The Crest Cargo Lift comes to you at a low price but feature rich.
- LIFETIME WARRANTY on All PARTS for the Original Purchaser *
- ETL listed A17.5 / B44 - A18.1
- Rack and pinion drive

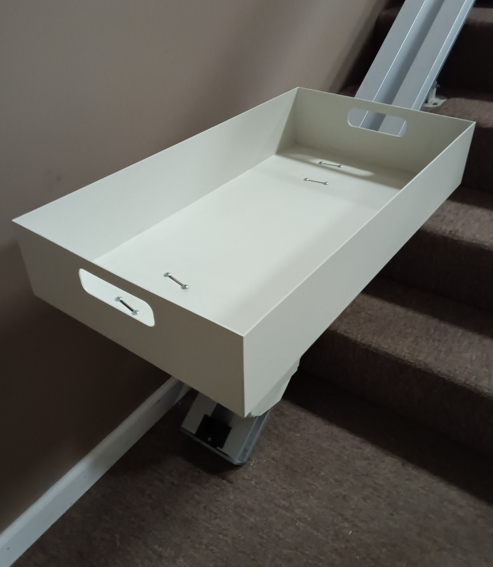

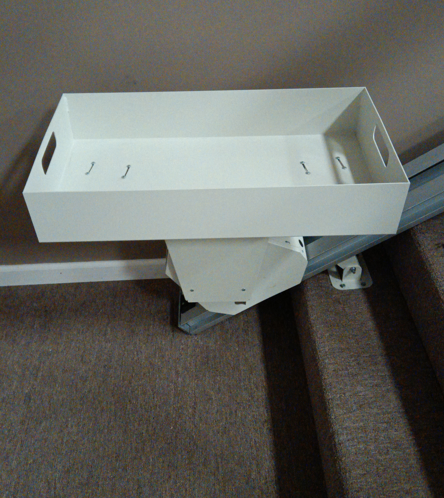

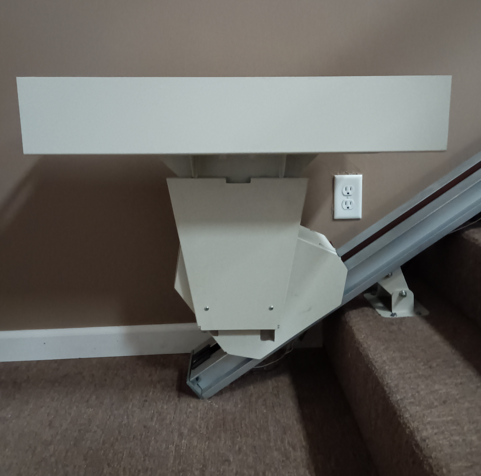

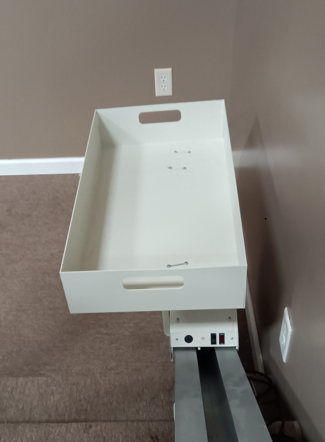

- 300 lbs capacity aluminum cargo tray
- Interior gear rack
- 25 to 45 degree angle applications
- Quick adjustment limit cams
- Wireless remote controls for upper and lower landings
- 15' track standard, additional sections available
- Chassis mounted auxiliary control switch
- Obstruction audio beep notification
- Battery operated system
- Low profile stair-hugger track and bracket design - 2-1/2" track rest on stairs
- Constant pressure controls
- 3" to 6" horizontal extension at top landing (depending on angle)
- ANODIZED aluminum rail
- 300 lbs capacity
- Overspeed governor
- Proudly made in the USA!
| Drive Type | Rack and Pinion |
| Battery Backup (DC) | Yes |
| Self Installable | Yes |
| Basic Installation Included | No |
| Standard Capacity | 300 lb |
| Max Track Length, Standard | 15' |
| Track Material | Anodized Aluminum |
| Swivel Seat | No |
| Flip-Up Seat | No |
| Flip-Up Armrests | No |
| Constant Pressure Controls | Yes |
| Footrest Safety Sensor | No |
| Warranty | 2 years on batteries / Lifetime on all parts for the original purchaser |
| Track Width | 6.5" |
| Call Stations Included | 2 |
| Rail Angle, Min | 25° |
| Rail Angle, Max | 45° |
| Digital Diagnostics Display | No |
| Key Lock | No |
Stair Lift Orientation
- Right$0.00
- Left$0.00
Chassis / Track Custom Color
- Chassis Custom Color$310.00
- RAL Color for Chassis Powder Coat$0.00
- Track Custom Color$462.00
- RAL Color for Track Powder Coat$0.00
Track Length
- Standard 15' Of Track$0.00
- Additional Track (Per Foot) (More Than 1' of Additional Track Incurs Additional Shipping Cost)$55.00
Stair Lift Measurements According to Measurement Guide
- Step 1 - Total Staircase Length$0.00
- Step 2 - Top Landing to Bottom Step$0.00
- Step 3 - Stair Width$0.00
- Step 4 - Available Space at Bottom$0.00
- Step 5 - Height of One Step$0.00
- Step 6 - Length of One Tread$0.00
- Step 7 - One Step Front Edge to Front Edge$0.00
- Step 8 - Available Space at Top$0.00
Options
- Tall Brackets$39.00
- Key Switch$77.00
Installation
- Self-Install$0.00
- Nationwide Installation Service$599.00
- Double Stair Lift Installation Service - Per Stair Lift$437.50
- Nationwide Measurement and Installation$749.00
- Stair Lift Removal and Disposal$499.00
Installation Special Cases
- Installation In Remote or Limited Access Location$345.00
- Installation On Concrete, Steel, or Tile Stairs$300.00
Shipping
- Additional Shipping Charge for Unit with More Than 16' of Track$100.00
- Shipping to Alaska or Hawaii (Call for Price)$0.00
