Harmar Summit Cargo Stair Lift

Harmar Summit Cargo Stair Lift
Product Review
(0)
(0)
$3,403.00
+Shipping & Handling

instant coupon

Product Box Top

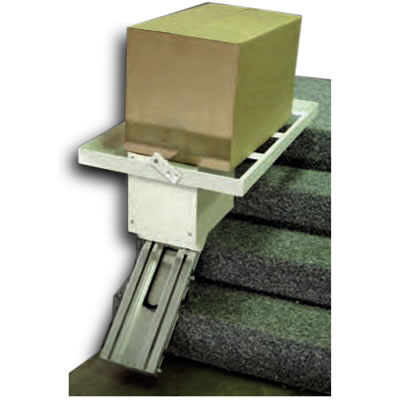

Harmar's Summit Cargo Stair Lift is a great addition to any storage room, warehouse, manufacturing plant, or other commercial building. This strong and sturdy cargo lift is designed to be installed on an existing staircase and is rated for transporting up to 350 pound loads. You can customize the track length to fit your staircase and enjoy the security of limit switches that will automatically stop the lift when it reaches the top or bottom of the stairs. (If the track length is 16 feet or longer, the weight capacity is reduced to 250 pounds.) This model runs off of a 115 VAC household current, so all you have to do is plug it into an existing electrical outlet. No major renovations required. When not in use, the space saving platform folds up and out of the way.

You also receive the standard stair lift seat with your Cargo Lift so you can always swap out the cargo carrier for the seat if your needs change and you want to transport a person rather than cargo.

Features:
  • Rocker controls with constant-pressure functionality stop the lift immediately if the control is released
  • Mounts to the stairs (not the wall) on either side of staircase
  • Operates on standard 115V AC household current
  • Extruded aluminum track is available in custom lengths
  • Separate controls at top and bottom of stairs
Drive TypeCable
Battery Backup (DC)No
Self InstallableYes
Basic Installation IncludedNo
Standard Capacity350 lb
Max Track Length, Standard15.5'
Max Track Length, Optional25'
Track MaterialAluminum
Swivel SeatYes
Flip-Up SeatNo
Flip-Up ArmrestsNo
Constant Pressure ControlsYes
Footrest Safety SensorNo
Seat Width17.5"
Seat Depth14"
Unit Footprint, In Use24.5"
Unit Footprint, Parked14"
Track Footprint12"
Track Width8"
Call Stations IncludedWired
Rail Angle, Min30°
Rail Angle, Max45°
Digital Diagnostics DisplayNo
Key LockNo
  • Options

    • No Image
      Keylock Package - Keyed Base & Keyed Call-Send Controls
      $443.00
    • No Image
      Keyed Base Only
      $236.00
    • No Image
      Wireless Call/Send Controls
      $443.00
  • Track Length (15' is Standard *)

    • No Image
      * Actual track is 6" longer. A 6" overrun is required to allow safe entry/exit from seat onto the landing at top of stairs.
      $0.00
    • No Image
      15' of track * (180")
      $0.00
    • No Image
      Custom Cut track Less Than 15'
      $150.00
    • No Image
      Track length 16' and over reduces weight capacity to 250 pounds
      $0.00
    • No Image
      Custom Cut 16' to 18' of track (180" to 216") 250 lb Capacity
      $350.00
    • No Image
      Custom Cut 18' to 25' of track (216" to 300") 250 lb Capacity
      $565.00
    • No Image
      20' of track Uncut 250 lb Capacity
      $250.00
    • No Image
      25' of track Uncut 250 lb Capacity
      $565.00
  • Orientation (looking UP the staircase)

    • No Image
      The stair lift will be on the left
      $0.00
    • No Image
      The stair lift will be on the right
      $0.00
  • Installation

    • No Image
      NOTE: We do not perform installations in Oregon or Washington. Please choose Self-Installation at checkout if you live there.
      $0.00
    • No Image
      Self Installation
      $0.00
    • No Image
      Nationwide Installation (Not available in Oregon or Washington)
      $599.00
    • No Image
      Nationwide Installation and Measurement Service (Not available in Oregon or Washington)
      $749.00
    • No Image
      Double Stair Lift Installation Service - Per Stair Lift (Not available in Oregon or Washington)
      $437.50
    • No Image
      Stair Lift Removal and Disposal (Not available in Oregon or Washington)
      $499.00
  • Installation Permit

    • No Image
      License / Permit / Inspection
      $425.00
    • No Image
      Permit and Inspection
      $350.00
    • No Image
      Permit (Required in Kentucky for EACH item being installed)
      $87.50
    • No Image
      Permit & Inspection (Required in Georgia for EACH item being installed)
      $250.00
    • No Image
      Permit & Inspection (Required in Alabama. Additional units incur additional fee.)
      $300.00
  • Installation Special Cases

    • No Image
      Installation On Concrete, Steel, or Tile Stairs
      $300.00
    • No Image
      Installation In Remote or Limited Access Location
      $345.00
  • Measurements

    • No Image
      Please enter measurements in feet or inches. Customers using the Measurement Service can skip this step.
      $0.00
    • No Image
      1. Overall length
      $0.00
    • No Image
      2. Top stair to bottom stair
      $0.00
    • No Image
      3. Staircase width
      $0.00
    • No Image
      4. Bottom clearance
      $0.00
    • No Image
      5. Rise of one step
      $0.00
    • No Image
      6. Tread of one step
      $0.00
    • No Image
      7. Diagonal
      $0.00
    • No Image
      8. Door at the top
      $0.00
    • No Image
      Need help measuring? Print out the "How to Measure" worksheet.
      $0.00
Product Box Bottom

Product Reviews

This product currently has no reviews. Would you like to leave one?
