Harmar Summit AC Straight Stair Lift

Harmar Summit AC Straight Stair Lift
Product Review
(0)
(0)
Additional Images

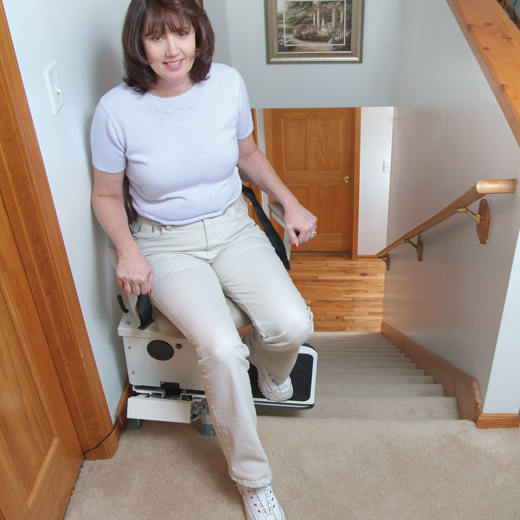

  • Showing Person at Top of Stairs with Chair Swiveled to Exit
$2,795.00
+Shipping & Handling

instant coupon

Product Box Top

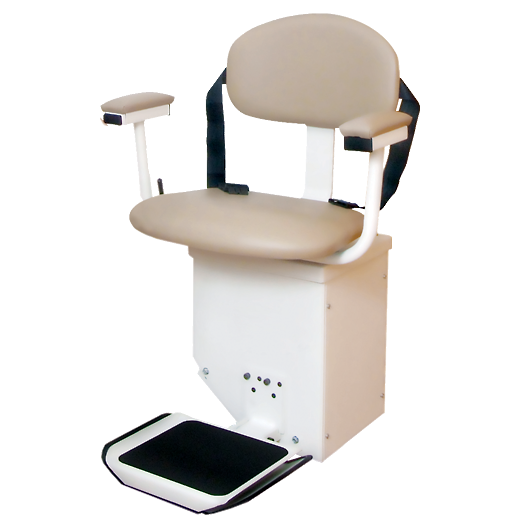

Harmar's SL350AC Stair Lift is engineered with a carriage that is pre-installed on a short section of the durable extruded aluminum track. The backrest has three different settings, and the fold-up footrest adjusts to two different heights for the utmost in custom comfort. The spacious, wide seat features thick padding and attractive upholstery.

Features:
  • Rocker controls with constant-pressure functionality stop the lift immediately if the control is released
  • Mounts to the stairs (not the wall) on either side of staircase
  • Operates on standard 115V AC household current
  • Extruded aluminum track is available in custom lengths
  • Seat and footrest fold to save space
  • Separate controls at top and bottom of stairs
Drive TypeCable
Battery Backup (DC)No
Self InstallableYes
Basic Installation IncludedNo
Standard Capacity350 lb
Max Track Length, Standard15.5'
Max Track Length, Optional25'
Track MaterialAluminum
Swivel SeatYes
Flip-Up SeatYes
Flip-Up ArmrestsNo
Constant Pressure ControlsYes
Footrest Safety SensorYes
Seat Width17.5"
Seat Depth14"
Unit Footprint, In Use24.5"
Unit Footprint, Parked14"
Track Footprint12"
Track Width8"
Call Stations IncludedWired
Rail Angle, Min30°
Rail Angle, Max45°
Digital Diagnostics DisplayNo
Key LockNo
  • Vinyl Seat Color

    • Light Almond Seat - Summit Stair Lift
      Light Almond
      $0.00
  • Seat Size

    • 17.5" W
      $0.00
    • 21" W
      $350.00
    • Flip-Up Armrest Seat (19" W)
      $350.00
  • Options

    • Keylock Package - Keyed Base & Keyed Call-Send Controls
      $443.00
    • Keyed Base Only
      $236.00
    • Grocery Basket
      $293.00
  • Track Length (15' is Standard *)

    • * Actual track is 6" longer. A 6" overrun is required to allow safe entry/exit from seat onto the landing at top of stairs.
      $0.00
    • 15' of track * (180")
      $0.00
    • Custom Cut track Less Than 16'
      $150.00
    • Track length 16' and over reduces weight capacity to 250 pounds
      $0.00
    • Custom Cut 16' to 20' of track 250 lb Capacity
      $350.00
    • Custom Cut 20' to 25' of track 250 lb Capacity
      $565.00
    • 20' of track Uncut 250 lb Capacity
      $250.00
    • 25' of track Uncut 250 lb Capacity
      $565.00
  • Orientation (looking UP the staircase)

    • The stair lift will be on the left
      $0.00
    • The stair lift will be on the right
      $0.00
  • Installation

    • NOTE: We do not perform installations in Oregon or Washington. Please choose Self-Installation at checkout if you live there.
      $0.00
    • Self Installation
      $0.00
    • Nationwide Installation (Not available in Oregon or Washington)
      $599.00
    • Nationwide Installation and Measurement Service (Not available in Oregon or Washington)
      $749.00
    • Double Stair Lift Installation Service - Per Stair Lift (Not available in Oregon or Washington)
      $437.50
    • Stair Lift Removal and Disposal (Not available in Oregon or Washington)
      $499.00
  • Installation Permit

    • License / Permit / Inspection
      $425.00
    • Permit and Inspection
      $350.00
    • Permit (Required in Kentucky for EACH item being installed)
      $87.50
    • Permit & Inspection (Required in Georgia for EACH item being installed)
      $250.00
    • Permit & Inspection (Required in Alabama. Additional units incur additional fee.)
      $300.00
  • Installation Special Cases

    • Installation On Concrete, Steel, or Tile Stairs
      $300.00
    • Installation In Remote or Limited Access Location
      $345.00
  • Measurements

    • Please enter measurements in feet or inches. Customers using the Measurement Service can skip this step.
      $0.00
    • 1. Overall length
      $0.00
    • 2. Top stair to bottom stair
      $0.00
    • 3. Staircase width
      $0.00
    • 4. Bottom clearance
      $0.00
    • 5. Rise of one step
      $0.00
    • 6. Tread of one step
      $0.00
    • 7. Diagonal
      $0.00
    • 8. Door at the top
      $0.00
    • Need help measuring? Print out the "How to Measure" worksheet.
      $0.00
Product Box Bottom

Product Reviews

This product currently has no reviews. Would you like to leave one?
