Harmar Pinnacle Stair Lift, 300 lb. with Folding Rail

Harmar Pinnacle Stair Lift, 300 lb. with Folding Rail
Product Review
(0)
(0)
Additional Images

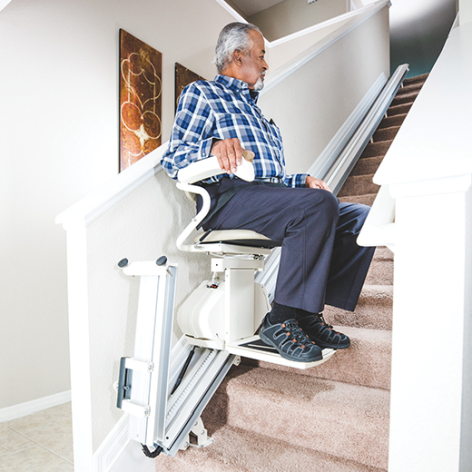

  • Person Riding Up the Stairs

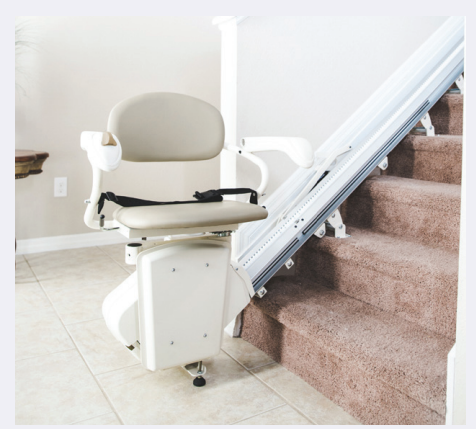

  • Parked at Bottom

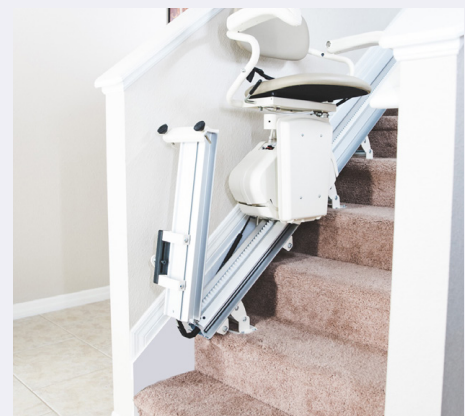

  • Folding Rail at Bottom Raising

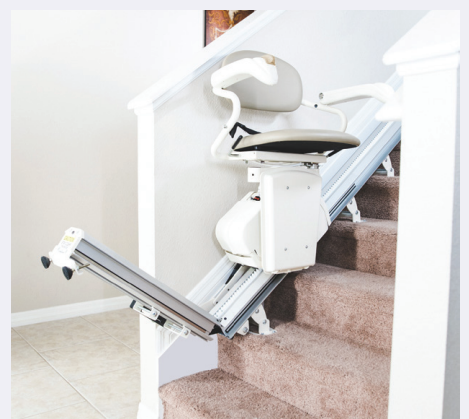

  • Folding Rail Fully Lifted to Clear Access at Bottom of Stairs
$5,145.00
+Shipping & Handling

instant coupon

Product Box Top
The Pinnacle SL300 Stair Lift is competitively priced with plenty of value. Very compact, it runs smoothly, and requires little to no maintenance.

The Pinnacle Stair Lift has an established reputation as an industry leader for its innovative design, solid performance and reliability. Its patented drive system serves as the cornerstone that makes this stair lift different from all others on the market.

The SL300 gives you peace of mind knowing its efficient motor offers extended performance during power loss, up to 40 trips up and down. Owners of this stair lift will enjoy a smooth stable ride due to its patented Helical Worm Gear and Nylon Polymer Gear Rack. Pinnacle is the most compact of stair lifts, folding closer to the wall so others can pass easily.

Harmar's exclusive automatic and mechanical folding rail removes obstructions and trip hazards at the lower landing area. Its operation is automatic, the user does not need to stop or have someone else assist. And since it’s mechanical, there are no additional switches or controls.
Drive TypePolymer Worm / Worm-Rack
Battery Backup (DC)Yes
Self InstallableYes
Basic Installation IncludedNo
Standard Capacity300 lb
Max Track Length, Standard15.5'
Max Track Length, Optional70'
Swivel SeatYes
Flip-Up SeatYes
Flip-Up ArmrestsYes
Constant Pressure ControlsYes
Footrest Safety SensorYes
Seat Width19"
Seat Depth16"
Unit Footprint, Parked13.6"
Rail Angle, Min32°
Rail Angle, Max45°
Digital Diagnostics DisplayNo
Key LockYes
  • Track Lengths Selection: 15' (180") is Standard *

    • option_name
      * Actual track is 7" longer. A 7" overrun is required to allow safe entry/exit from seat onto the landing at top of stairs.
      $0.00
    • No Image
      15' (180") of Track
      $0.00
    • No Image
      Length in inches if Shorter than 180" (allow +7" for entry/exit)
      $0.00
  • Additional Track (Maximum 70' Including the 15' Standard Track)

    • No Image
      Up to 3' of Additional Track
      $215.00
    • No Image
      Up to 5' of Additional Track
      $358.00
    • No Image
      Up to 7'9" (93") of Additional Track
      $500.00
  • Additional Brackets (comes with standard)

    • No Image
      Standard Brackets
      $29.00
    • No Image
      Tall Brackets
      $29.00
  • Options

    • No Image
      Seat Belt
      $0.00
    • No Image
      Track Cut to Custom Length (Required for any track cut)
      $136.00
    • No Image
      Key Lock on Chasis
      $136.00
  • Call Stations

    • No Image
      Top & Bottom Call-Send Stations
      $0.00
  • Orientation (looking UP the staircase)

    • No Image
      The stair lift will be on the left
      $0.00
    • No Image
      The stair lift will be on the right
      $0.00
  • Installation

    • No Image
      NOTE: We do not perform installations in Oregon. For residents in Oregon, please choose self-installation at checkout
      $0.00
    • No Image
      Self Installation
      $0.00
    • No Image
      Nationwide Installation
      $599.00
    • No Image
      Nationwide Installation and Measurement Service
      $749.00
    • No Image
      Double Stair Lift Installation Service - Per Stair Lift
      $437.50
    • No Image
      Stair Lift Removal and Disposal
      $499.00
  • Installation Special Cases

    • No Image
      Installation On Concrete, Steel, or Tile Stairs
      $300.00
    • No Image
      Installation In Remote or Limited Access Location
      $285.00
  • Measurements

    • No Image
      Please enter measurements in feet or inches. Customers using the Measurement Service can skip this step.
      $0.00
    • No Image
      1. Overall length
      $0.00
    • No Image
      2. Top stair to bottom stair
      $0.00
    • No Image
      3. Staircase width
      $0.00
    • No Image
      4. Bottom clearance
      $0.00
    • No Image
      5. Rise of one step
      $0.00
    • No Image
      6. Tread of one step
      $0.00
    • No Image
      7. Diagonal
      $0.00
    • No Image
      8. Door at the top
      $0.00
    • No Image
      Need help measuring? Please see our "How to Measure" page.
      $0.00
Product Box Bottom

Product Reviews

This product currently has no reviews. Would you like to leave one?
