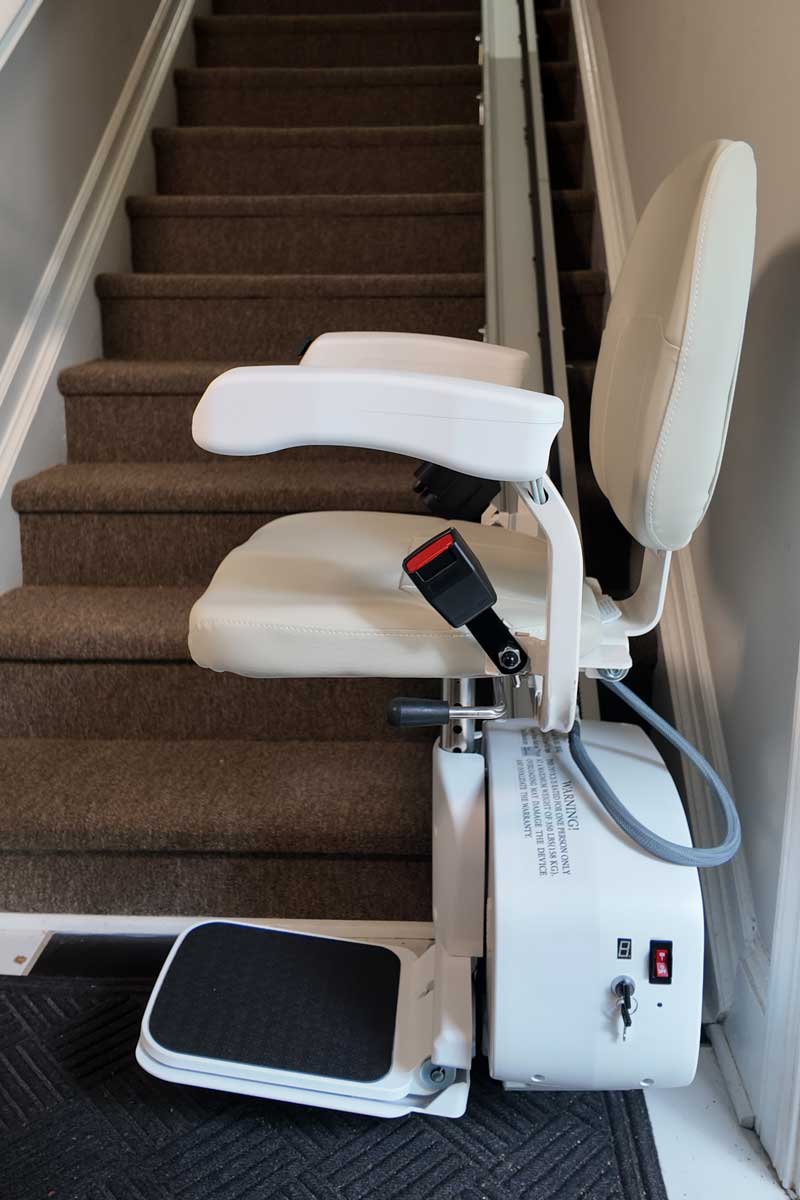

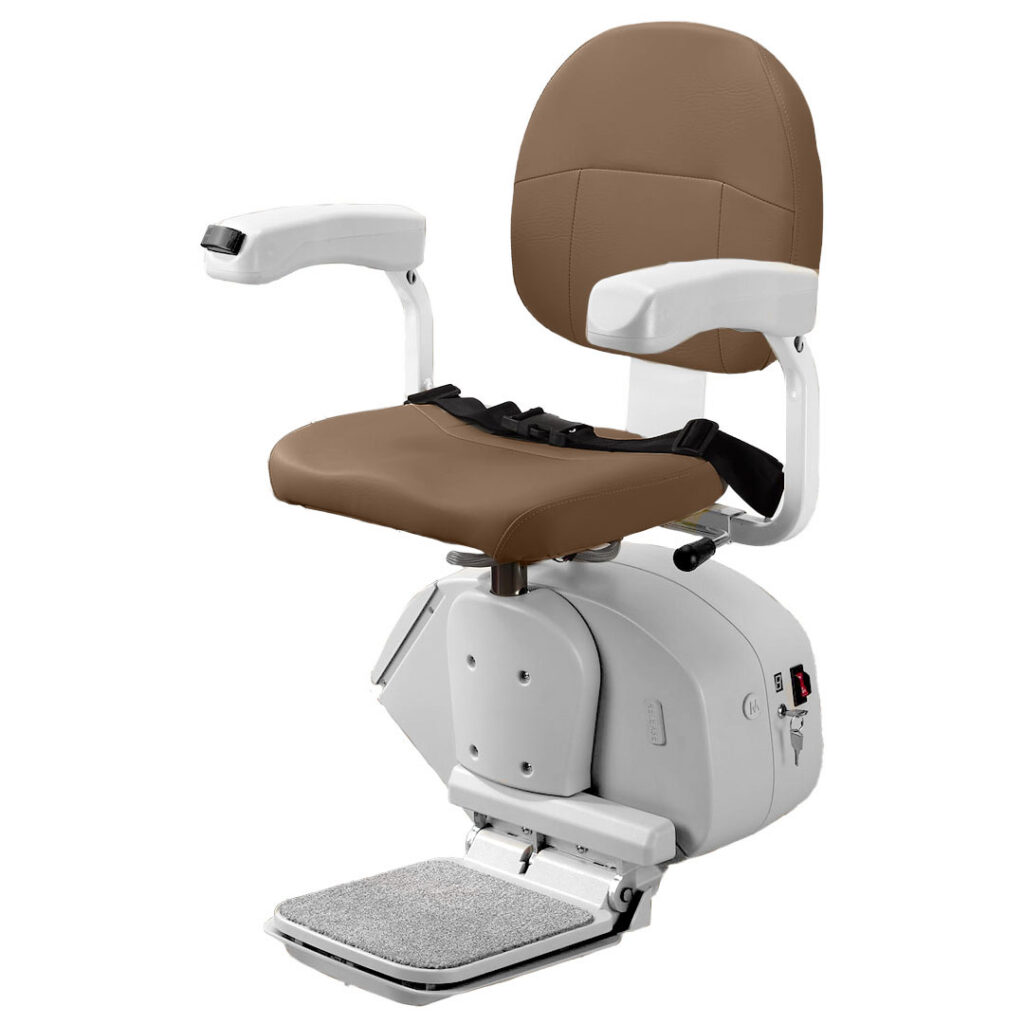

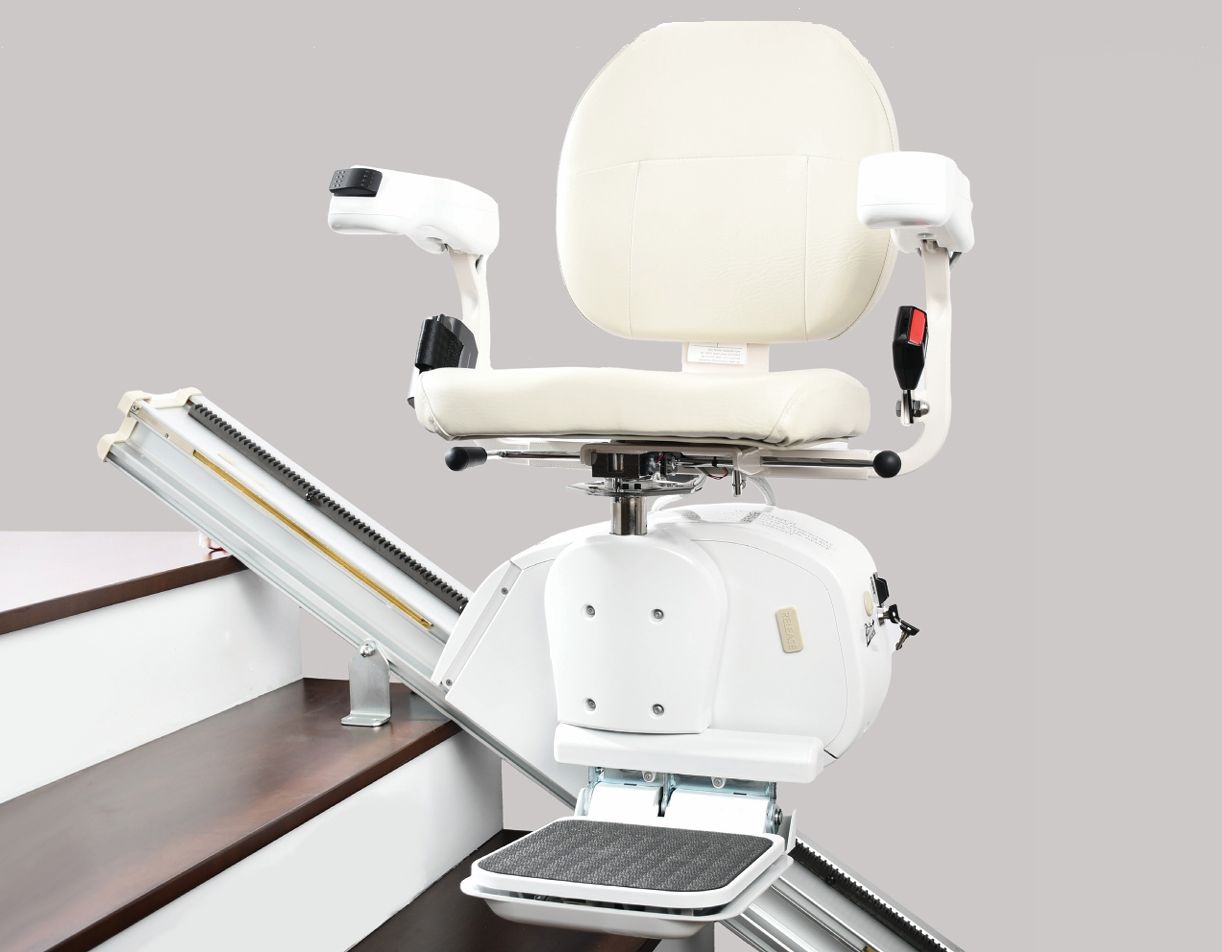

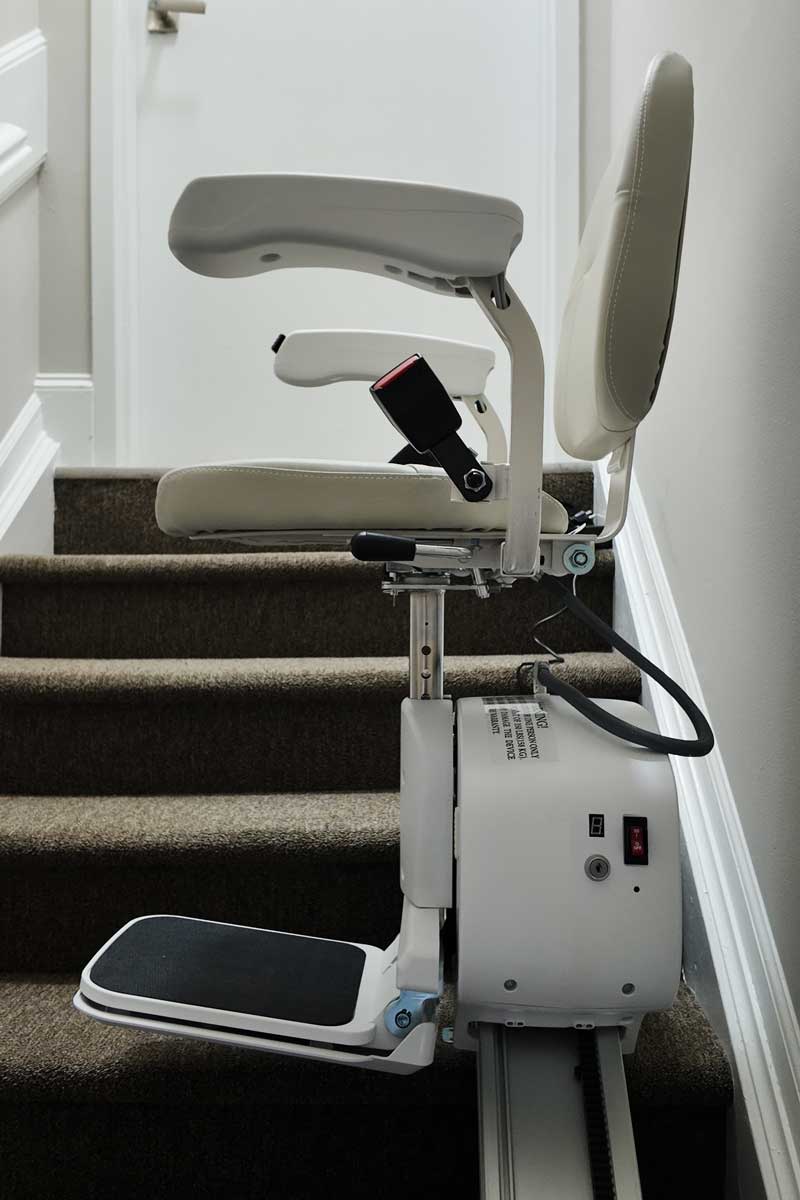

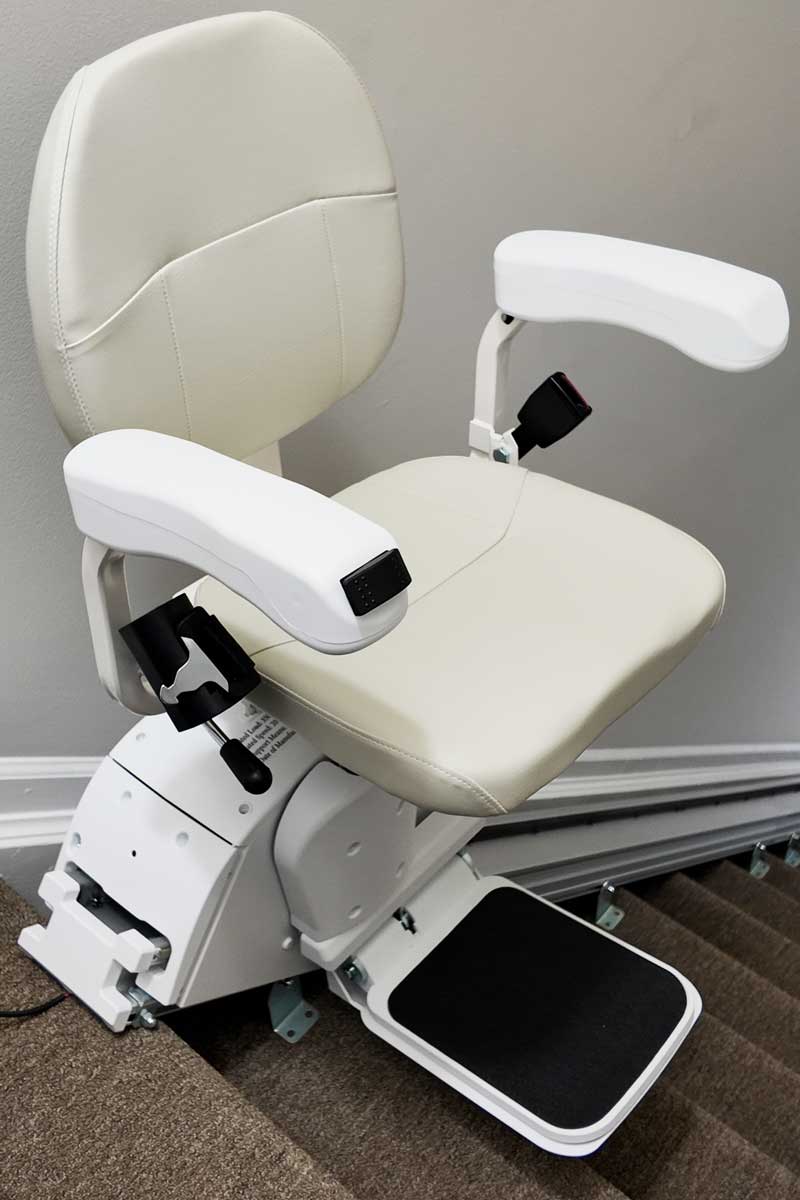

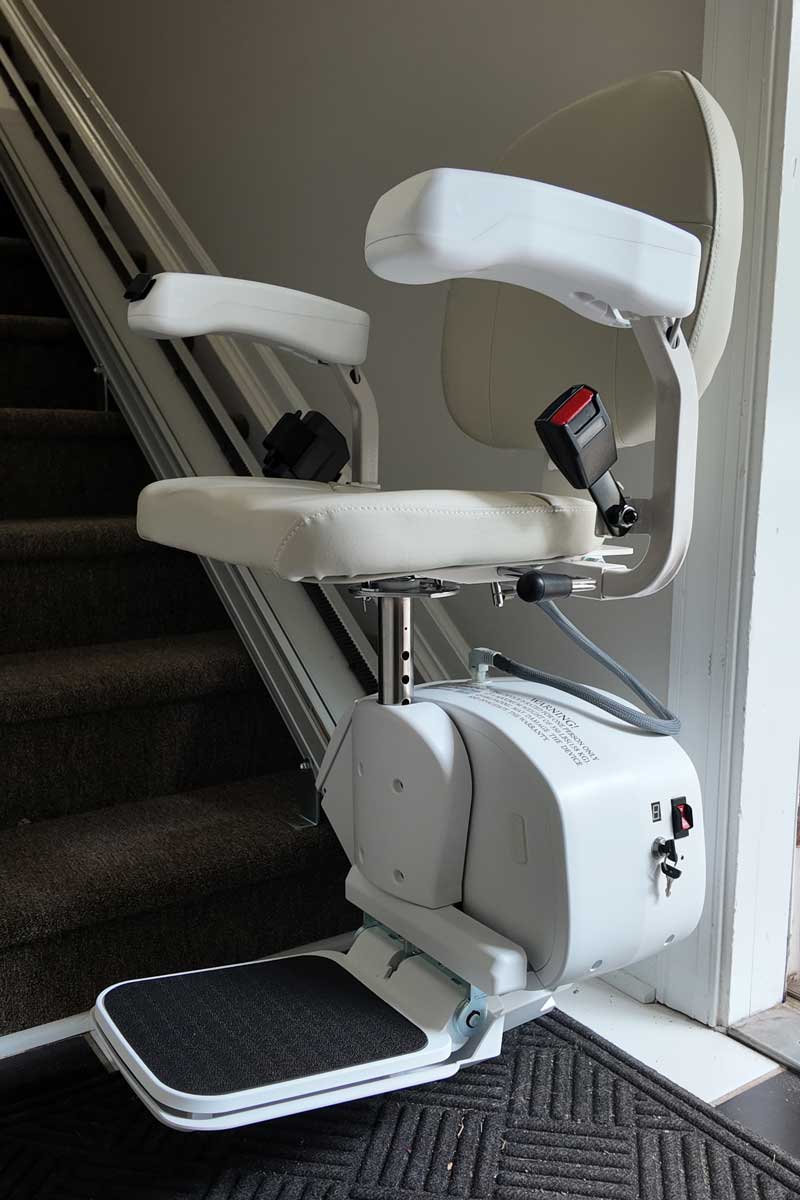

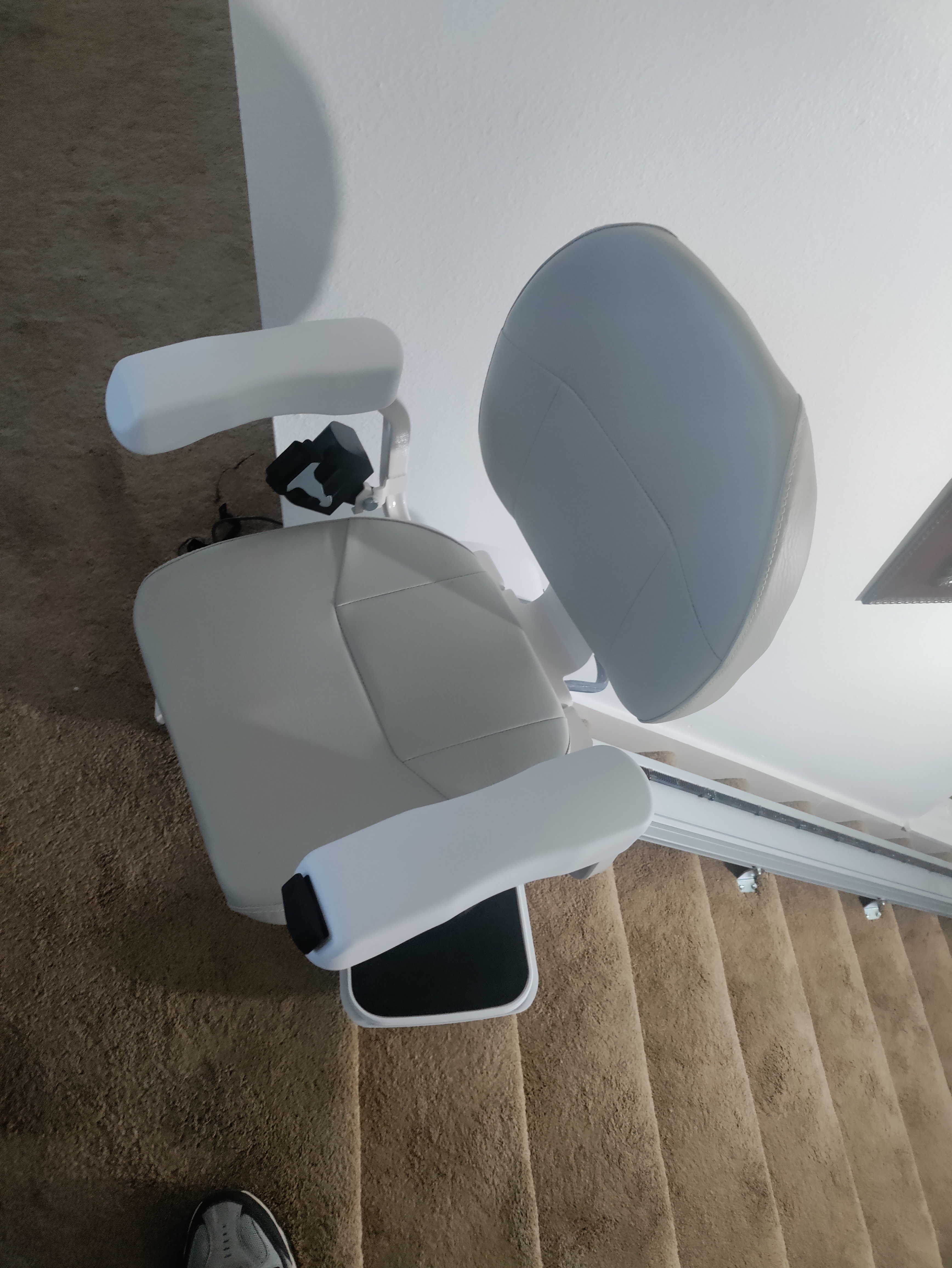

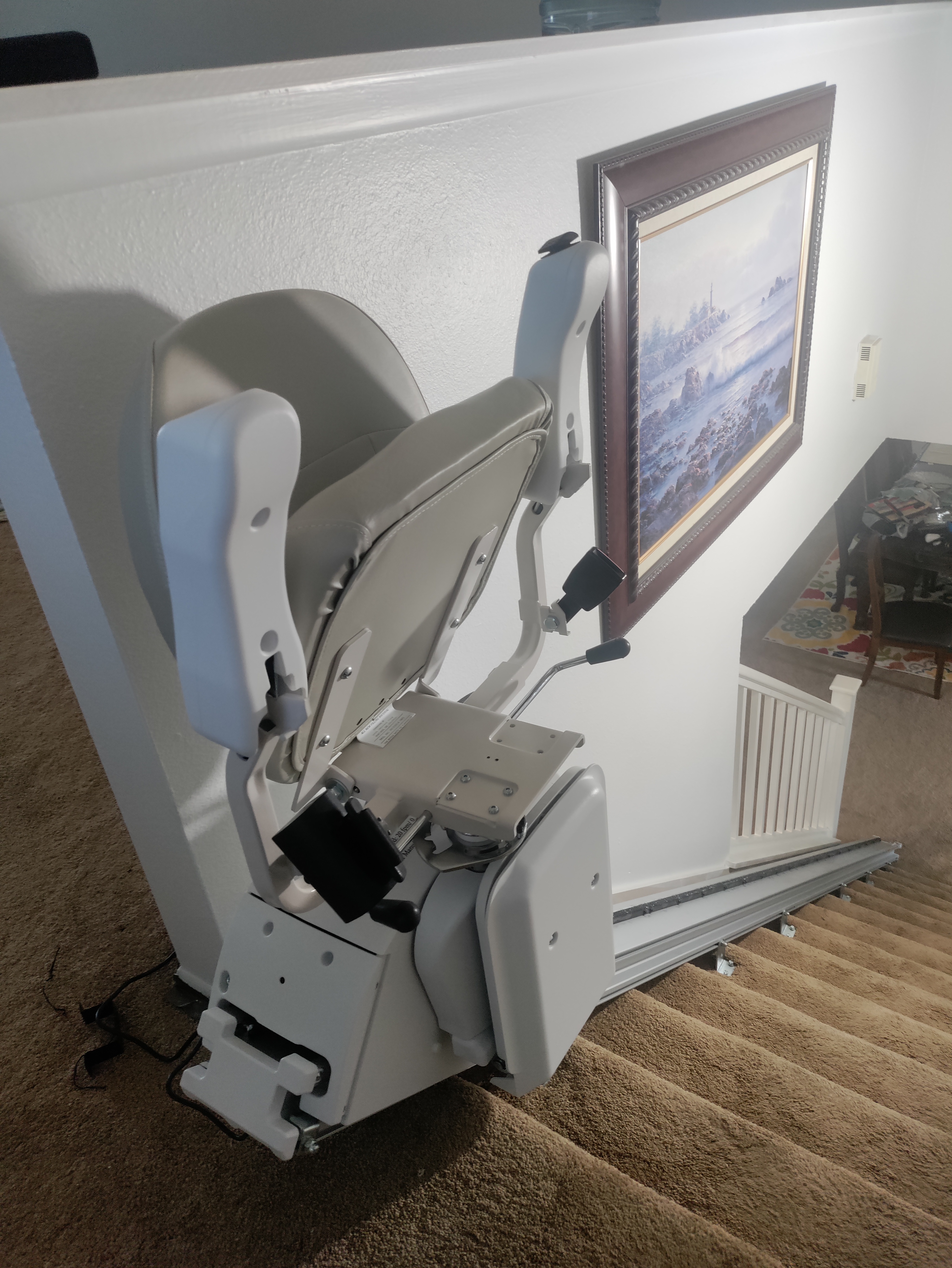

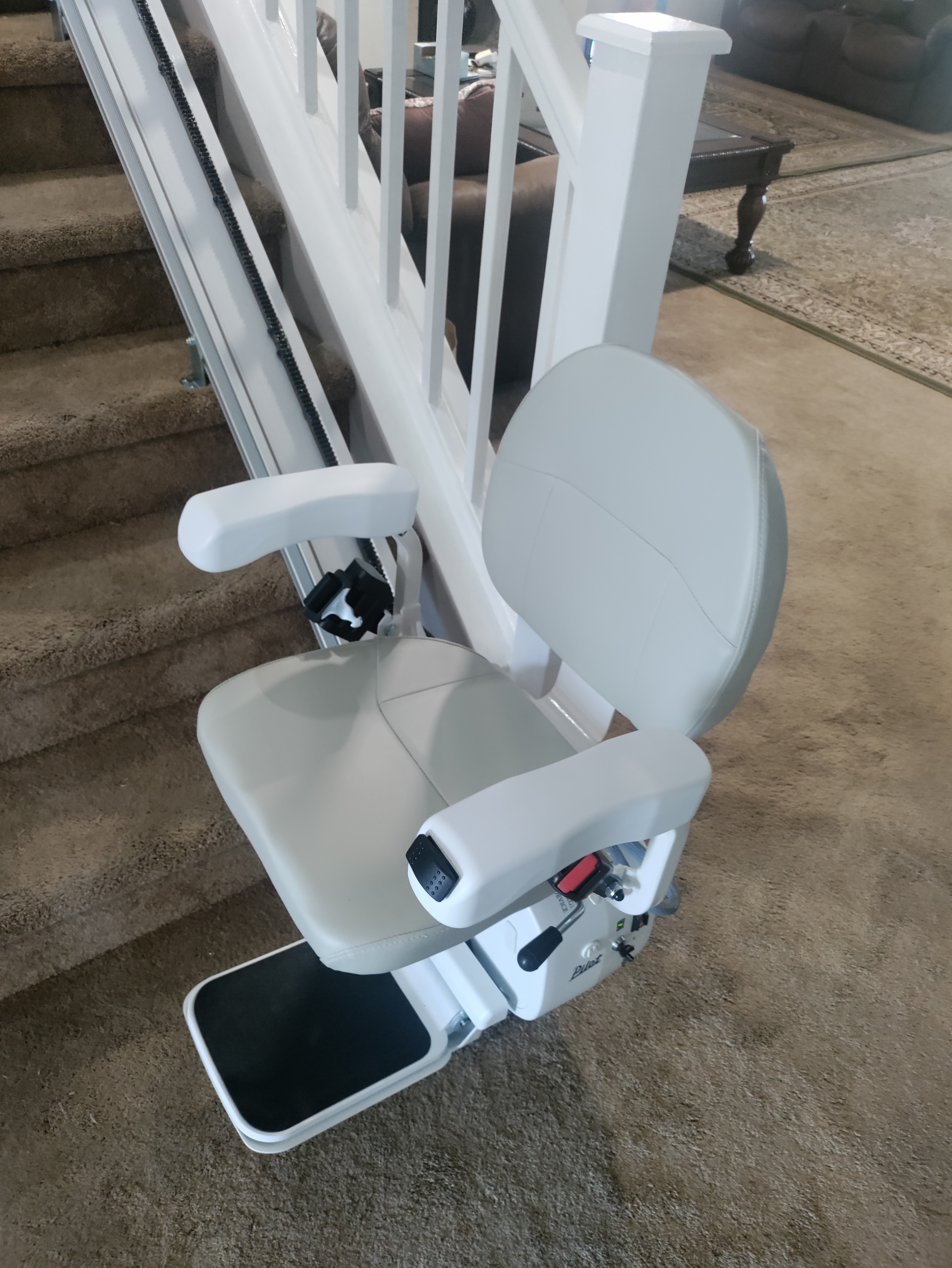

The Crest HD Stair Lift delivers exceptional versatility, heavy-duty performance, and advanced safety features. With a 350 lb. weight capacity, its universal design supports both left and right-side installation, while adjustable armrest width, seat height, and toggle control offer customizable comfort. A 2-position swivel seat ensures safe and easy transfers.
Functionality is enhanced with extra-long charging stations and 9Ah batteries, capable of lasting up to 20 days in power-saving sleep mode during outages. Maintenance is streamlined with a battery test point, diagnostic display, and easy-access service panels.
Robust safety features include:
Note: Capacity is derated to 300lbs if installed at 46 to 55 degree angle or adding the hinged rail option.
Functionality is enhanced with extra-long charging stations and 9Ah batteries, capable of lasting up to 20 days in power-saving sleep mode during outages. Maintenance is streamlined with a battery test point, diagnostic display, and easy-access service panels.
Robust safety features include:
- 5 directional safety sensors
- Retractable seat belt
- Armrest and seat position sensors
- Over-speed governor
- Electro-mechanical brake system
- Key switch for controlled access
Note: Capacity is derated to 300lbs if installed at 46 to 55 degree angle or adding the hinged rail option.

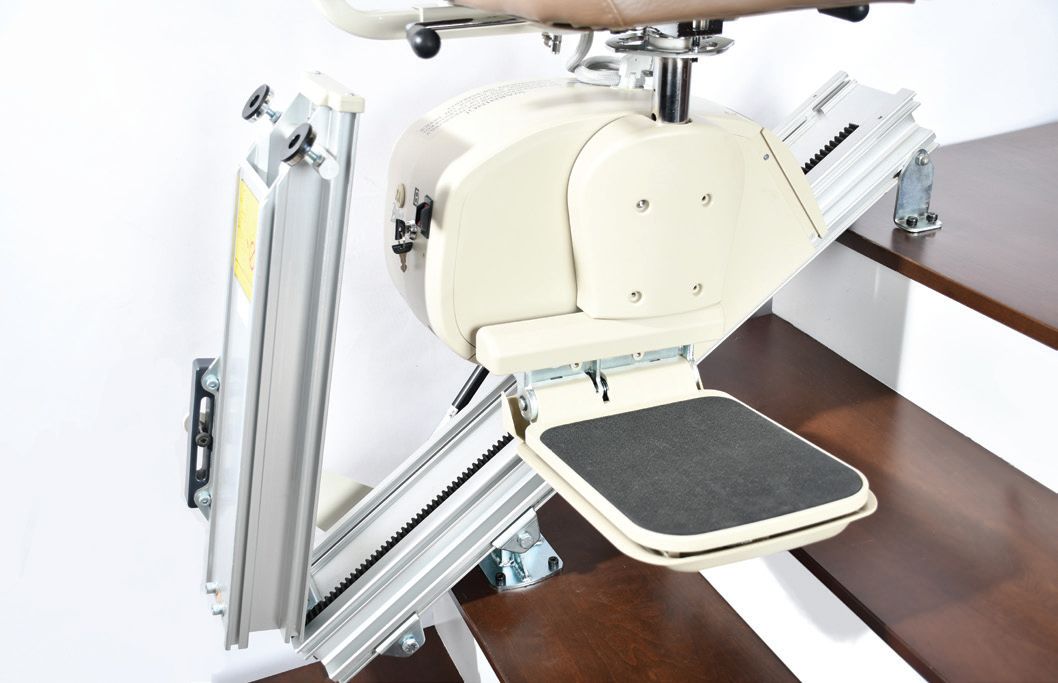

Drive Type | Rack and Pinion |
Battery Backup (DC) | Yes |
Self Installable | Yes |
Basic Installation Included | No |
Standard Capacity | 350 lb |
Max Track Length, Standard | 16' |
Max Track Length, Optional | 32' |
Swivel Seat | Yes |
Flip-Up Seat | Yes |
Flip-Up Armrests | Yes |
Constant Pressure Controls | Yes |
Footrest Safety Sensor | Yes |
Seat Width | 16" |
Seat Depth | 16.36" |
Unit Footprint, In Use | 23" |
Unit Footprint, Parked | 13" |
Call Stations Included | 2 Wireless |
Swivel Seat Rotation | 90 Degrees at top landing |
Seat Width, Max | 20" |
Rail Angle, Min | 25° |
Rail Angle, Max | 55° |
Digital Diagnostics Display | Yes |
Key Lock | Yes |
