Crest Shaftless Elevator

Crest Shaftless Elevator
Product Review
(0)
(0)
Additional Images

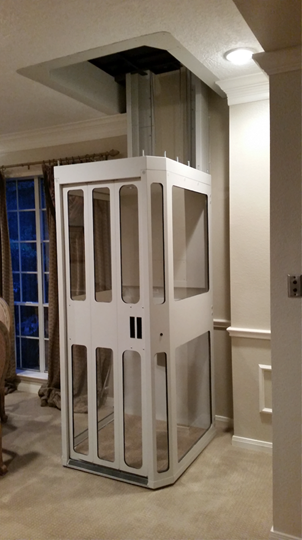

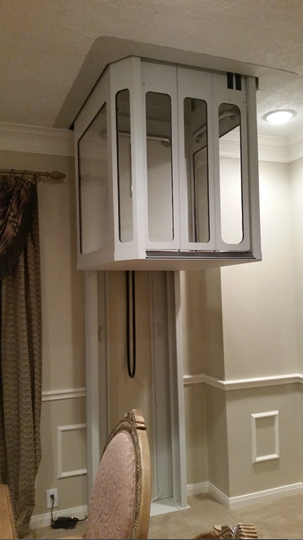

  • Through Floor in Motion

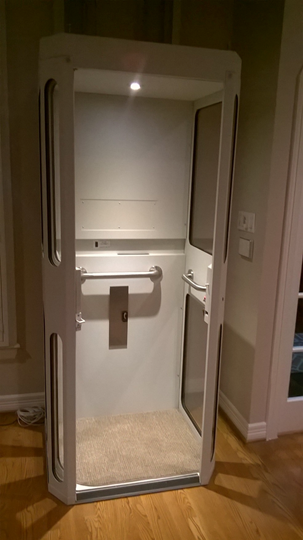

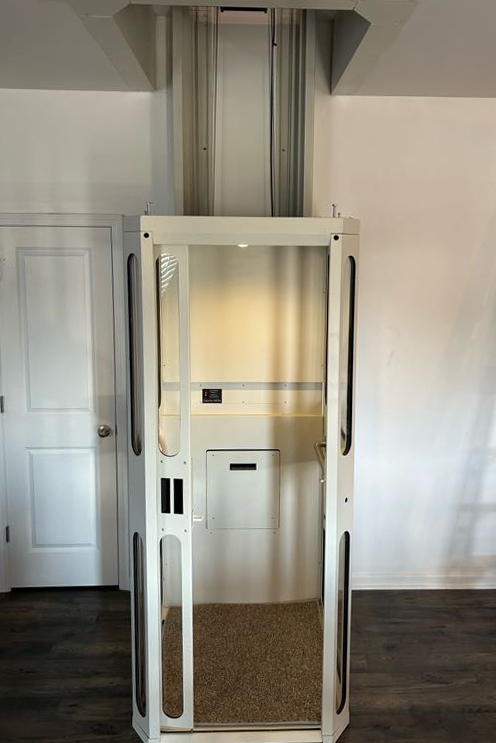

  • Inside of Car

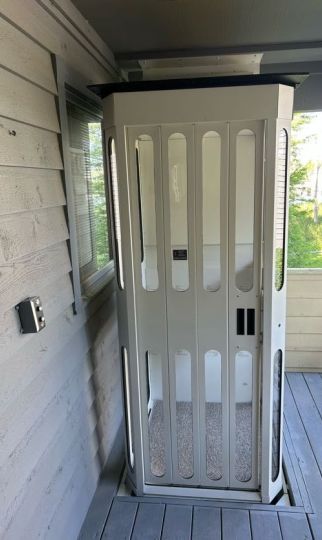

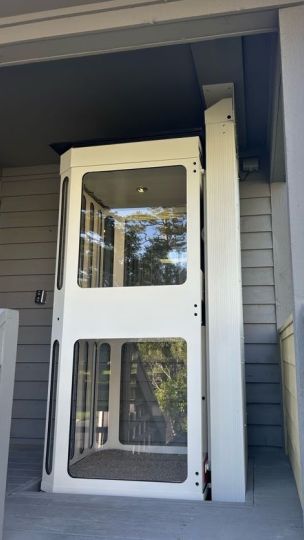

  • Outdoors Top Level

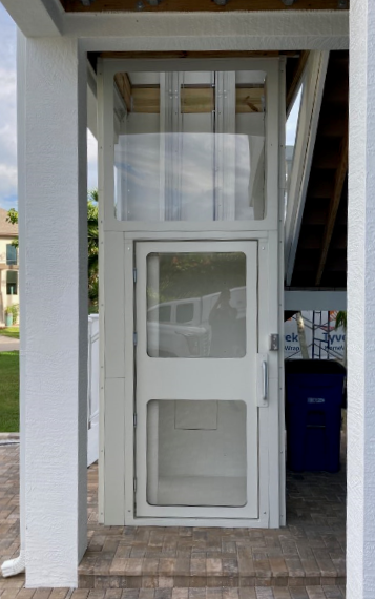

  • Outdoors Lower Level

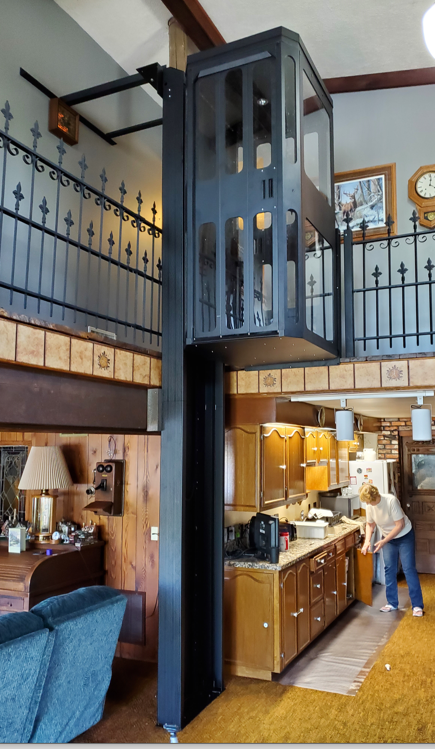

  • Freestanding Option
  • In Optional Enclosure
$17,858.00

instant coupon

Product Box Top
The industry's ONLY battery powered residential elevator. The residential elevator virtually eliminates concerns regarding power outages. The unit can run multiple trips (10+), in BOTH directions, on its own batteries. Because the Crest Shaftless Elevator only goes from one floor to the next, it requires no hoistway or shaft. This means it takes much less space from your home than most elevators would.

Included Features:
  • Fold-down seat
  • Sliding car door with clear vision panels
  • Battery powered with charger
  • Limit switches at each stop
  • Final limit at top
  • Constant pressure controls
  • RF wireless call stations/Key Fob
  • Diagnostic LED indicator
  • Battery powered with charger
  • Emergency stop and alarm
  • Honeywell door interlock
  • Hatch cover with sensors
  • Safety pan on bottom of car
  • Slack cable device
  • Phone
  • Meets or exceeds A17.1, Part 5
  • Made in America

Call for Shipping Price
ApplicationsResidential Indoor
Capacity400 lb
Maximum Travel Distance21
Cab Dimensions (standard)33"W x 26"D
Cab Dimensions (optional)33"W x 35"D or 33"W x 39"D
Speed (per minute)15'
Minimum Overhead Required90"
DriveTravels with the Car
Motor/PumpDC Motor
Warranty2 year battery warranty – 3 year warranty on all other items.
TypeDual Winding Drum
Cab Heights76
Max Landings2
Power Requirement110 VAC 2A
Pit DepthPit Not Required
EmergencyEmergency Stop, Telephone in Car
SafetyLED Light in Car, Non-Slip Floor, Safety Pan, Slack Cable
  • Car Configuration

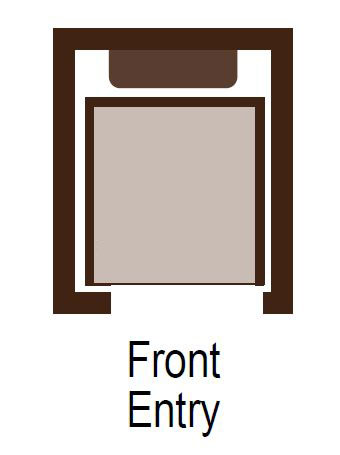

    • Front Entry 33"W x 26"D (EZ3)
      Front Entry 33"W x 26"D (EZ3)
      $0.00
    • Front Entry 33"W x 35"D (EZ4)
      Front Entry 33"W x 35"D (EZ4)
      $0.00

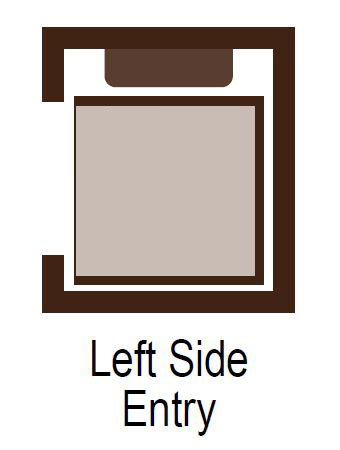

    • Left Side Entry 33"W x 39"D (EZ5)
      Left Side Entry 33"W x 39"D (EZ5)
      $1,072.00

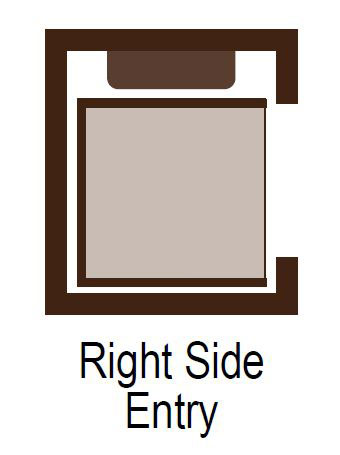

    • Right Side Entry 33"W x 39"D (EZ5)
      Right Side Entry 33"W x 39"D (EZ5)
      $1,072.00

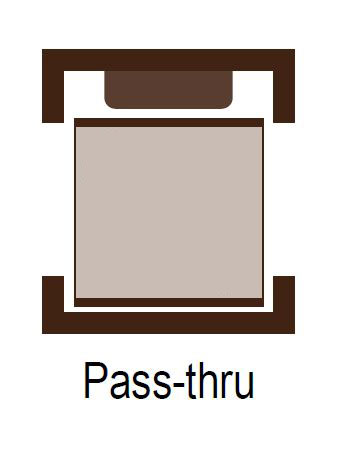

    • Straight Through 33"W x 39"D (EZ5)
      Straight Through 33"W x 39"D (EZ5)
      $1,715.00
  • Travel Distance (Shaftless Only)

    • Up to 14'
      $0.00
    • Over 14' Up to 21'
      $1,429.00
  • Number of Stops

    • 2 Stops (EZ3, EZ4, EZ5)
      $0.00
    • Requires Enclosure Below or a Hoistway Installation
      $0.00
    • 3 Stops (Enclosed EZ5 ONLY)
      $1,429.00
    • 4 Stops (Enclosed EZ5 ONLY)
      $2,858.00
  • Top Landing Gate (Shaftless Only)

    • No Top Landing Gate or Not Freestanding
      $0.00
    • Left Hand Swing Top Gate
      $1,422.00
    • Right Hand Swing Top Gate
      $1,422.00
    • RDI Interlock with Latch Plate (for doors provided by others)
      $741.00
  • Semi-Free Standing Rail (Shaftless Only)

    • Not Freestanding
      $0.00
    • Full - Free Standing Rail
      $1,429.00
    • Top Only - Free Standing Rail
      $822.00
    • Bottom Only - Free Standing Rail
      $679.00
  • Enclosure and Options for Enclosure or unit in Hoistway (EZ5)

    • Acrylic Enclosure 8' Section
      $4,136.68
    • Floors over 8' for Extended Enclosure (per floor)
      $741.00
    • 28" Enclosure Style Door w/RDI Interlock
      $3,139.00
    • 28" Flush Door Frame w/RDI Interlock (shaft and slab by others)
      $1,760.00
    • 28" Fire Rated Steel Door w/RDI Interlock
      $4,208.00
    • RDI Interlock with Latch Plate (for doors provided by others)
      $741.00
    • Wireless Key Fob (per Fob)
      $143.00
    • Automatic Return to Home Floor
      $429.00
    • EZ5 in a Hoistway or Enclosure Above Standard Travel Distance is Up to 21'
      $0.00
    • Over 21' up to 31' Travel Distance
      $3,334.00
  • Custom Powder Coat Color (Standard is RAL 9002)

    • Adds to Lead Time and Requires an Approval of a Sample
      $0.00
    • Elevator Car Custom Powder Coat
      $5,463.00
    • Track / Header Custom Powder Coat
      $858.00
    • Top Landing Gate Custom Powder Coat
      $1,389.00
    • 3 or 4 Landing Track Custom Powder Coat
      $1,000.00
    • Enclosure Custom Powder Coat (per floor)
      $1,852.00
    • Enclosure Door Custom Powder Coat (per door)
      $1,389.00
    • RAL Color Code
      $0.00
  • Options

    • Key Switch on Call Station (shaftless unit)
      $72.00
    • Key Switch on Call Station (enclosed unit)
      $72.00
    • State Compliance Package
      $572.00
    • Washington State Compliance Package
      $572.00
  • Shipping - Call for Price

    • Call for Shipping Price
      $0.00
