Crest Outdoor Elevator

Crest Outdoor Elevator
Product Review
(0)
(0)
Additional Images

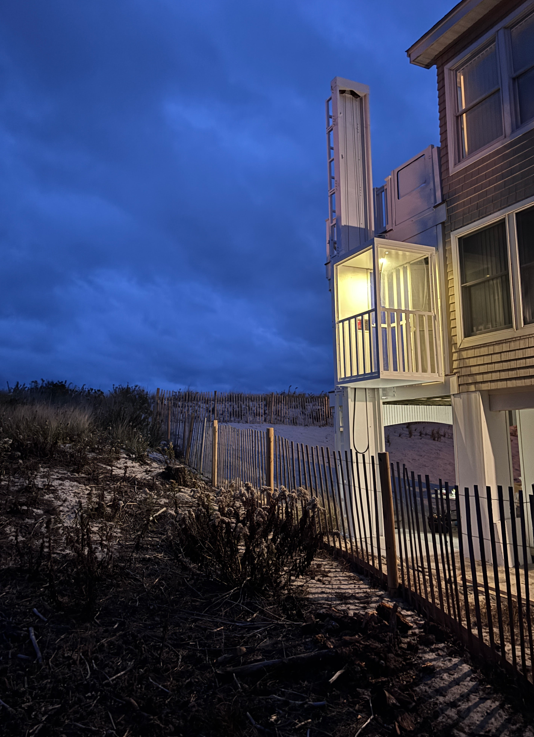

  • 3-Stop Installation

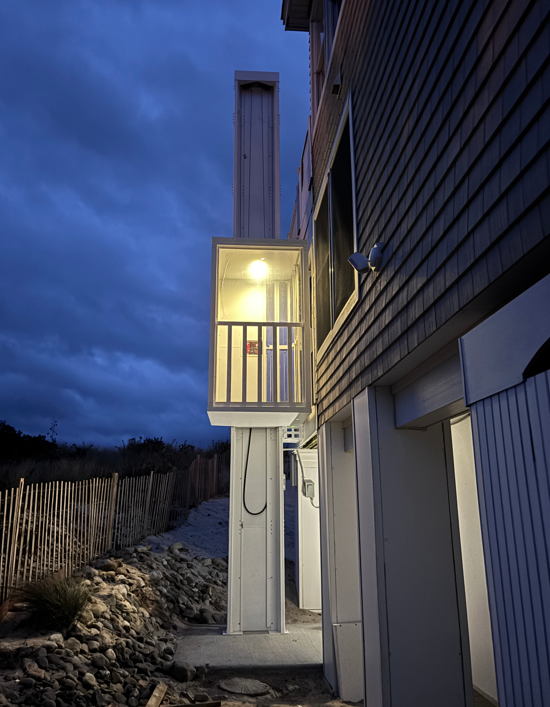

  • 3-Stop Installation-2

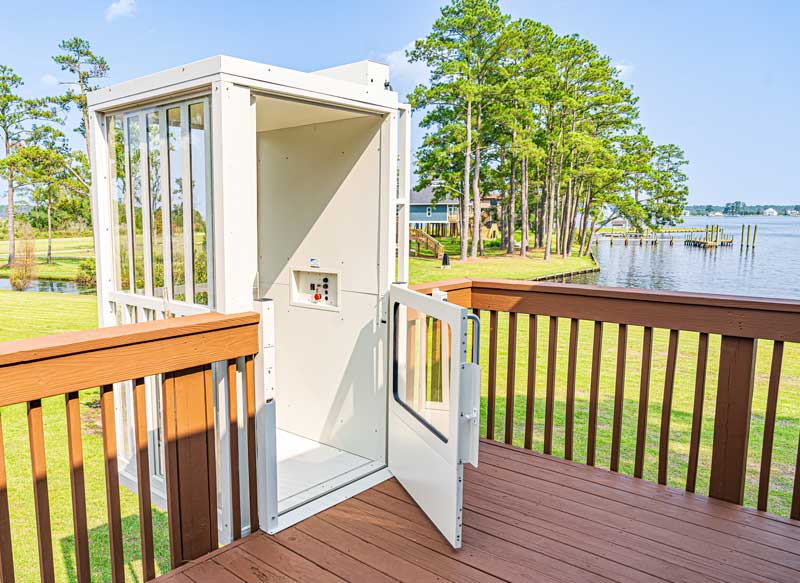

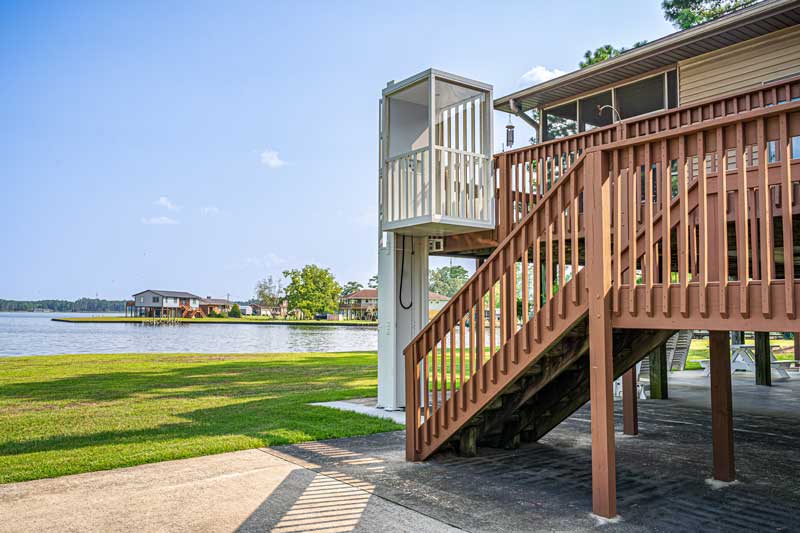

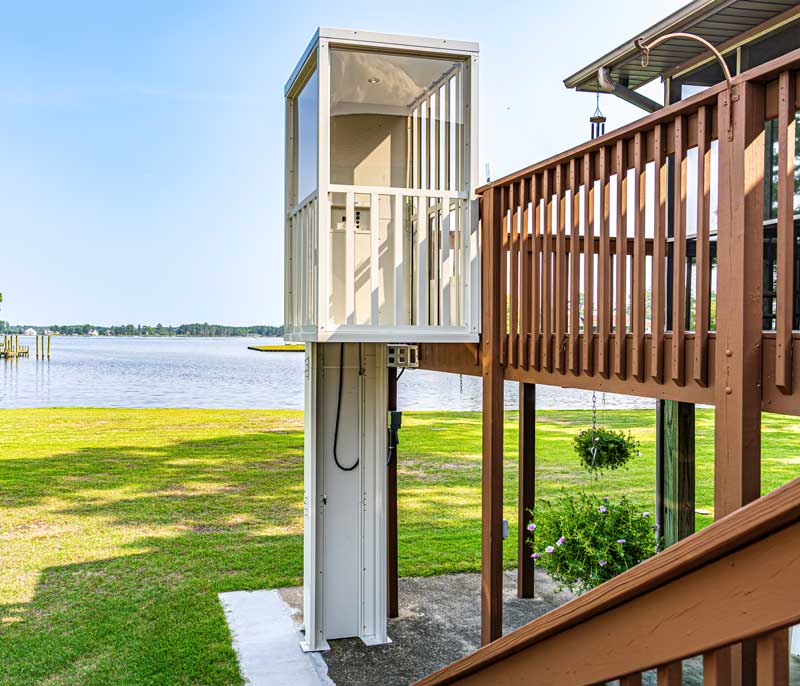

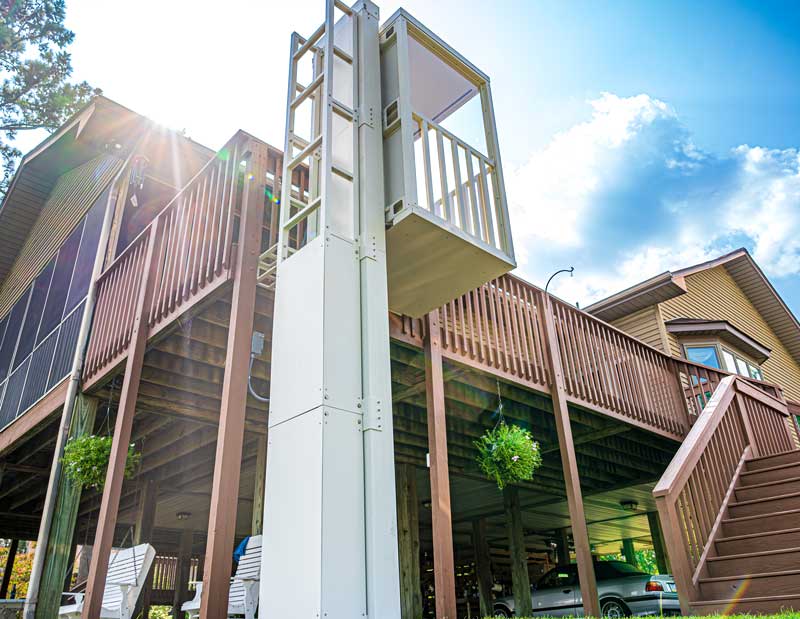

  • Crest Outdoor Elevator Example

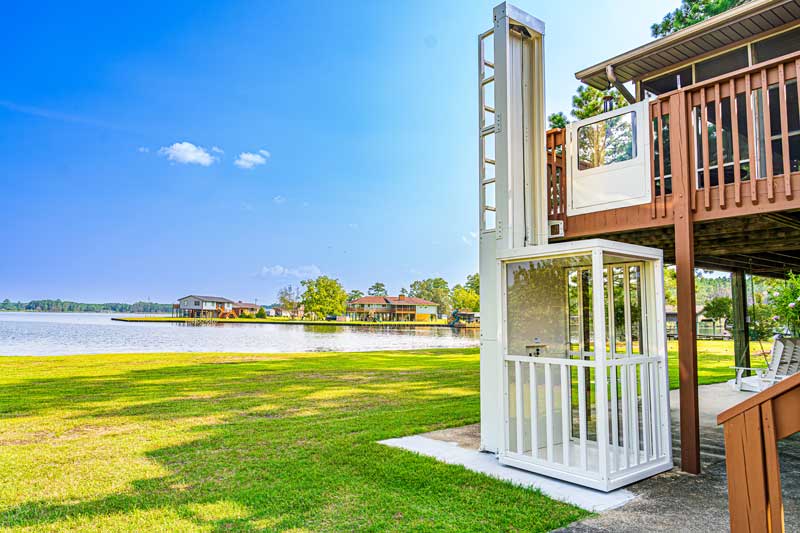

  • Crest Outdoor Elevator Example 2

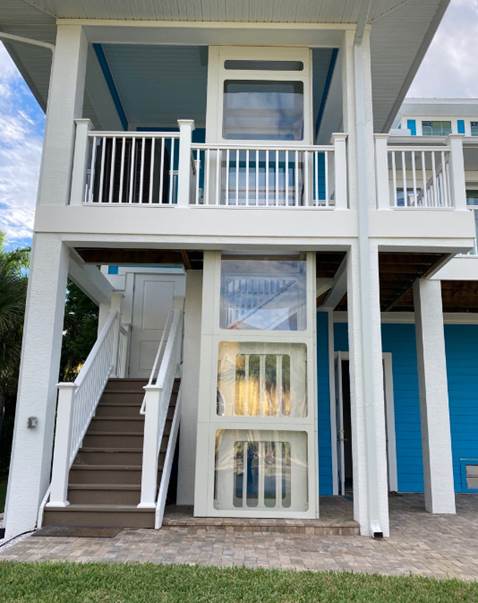

  • Crest Outdoor Elevator Example 3
  • Crest Outdoor Elevator Example 4
  • Crest Outdoor Elevator Example 5

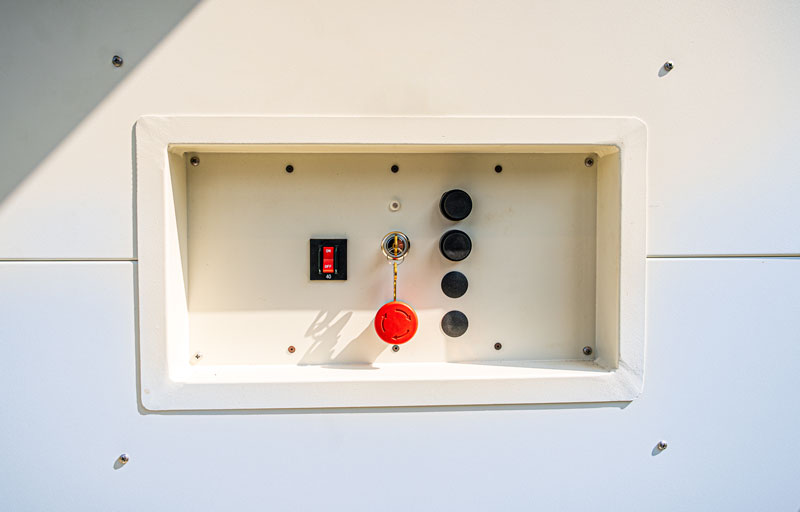

  • Crest Outdoor Elevator Controls

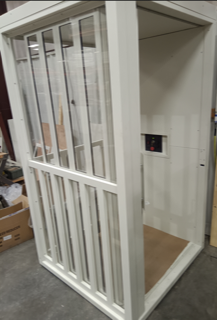

  • Door Open

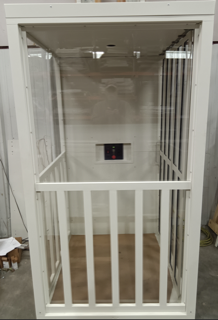

  • Door Closed
  • Looking Straight In Through Clear Vision Wall Panels
$24,999.00

instant coupon

Product Box Top
The Crest Outdoor Elevator can operate as a stand-alone unit be installed in an elevator hoistway or in an optional enclosure providing you affordable and safe travel between floors of your home. The Crest Outdoor can accommodate a wheelchair and provides several options for entry/exit. There is no need for a pit nor a machine room on this battery powered, modern elevator.

Included Features:
    Mechanical:
  • Maximum travel to 21' (14’ standard)
  • Capacity: 500 lbs
  • Extruded aluminum track (powder coated)
  • Stainless steel hardware
  • Dual winding cable drums with 1/4" aircraft cables

  • General:
  • Shaftless
  • Speed: 15 fpm
  • Maximum number of stops: 4
  • Data plates and capacity tags

  • Car:
  • Finish: RAL 9002 powder coated metal
  • Configuration: Single car entry
  • Top and bottom safety sensors
  • Clear vision panels in walls
  • Sliding car door with clear vision panels

  • Controls:
  • Battery powered
  • Battery charger
  • Circuit board controller
  • Constant pressure controls
  • RF wireless call stations
  • Diagnostic indicator
  • Automatic lighting

  • Safety Devices:
  • Limit switches at each stop
  • Final limit at top and bottom
  • Emergency stop
  • Slack cable device
  • Honeywell interlocks on car and at each landing

  • Limited Warranty:
  • 1 Year: Batteries
  • 2 Years: Parts
  • 3 Years: Drive Train / Circuit Board

Call for Shipping Price
ApplicationsResidential
Capacity500 lb
Maximum Travel Distance142"
Speed (per minute)15'
Minimum Overhead Required90"
DriveTravels with Car
Motor/PumpDC Motor
Warranty1 Year Battery Warranty – 2 Year Warranty on Parts, 3 Year Warranty on Drive Train and Circuit Board
TypeDual Winding Drum
Cab Heights76
Power Requirement110 VAC 2A
Pit DepthPit Not Required
EmergencyEmergency Stop, Telephone in Car
SafetyLED Light in Car, Non-Slip Floor, Safety Pan, Slack Cable, Honeywell Interlocks on car and each landing
  • Car Size

    • 42"x42" Car
      $0.00
  • Car Configuration

    • Front Entry Left Hand Gate
      Front Entry Left Hand Gate
      $0.00
    • Front Entry Right Hand Gate
      Front Entry Right Hand Gate
      $0.00
    • Left Side Entry Left Hand Gate
      Left Side Entry Left Hand Gate
      $0.00
    • Left Side Entry Right Hand Gate
      Left Side Entry Right Hand Gate
      $0.00
    • Right Side Entry Left Hand Gate
      Right Side Entry Left Hand Gate
      $0.00
    • Right Side Entry Right Hand Gate
      Right Side Entry Right Hand Gate
      $0.00
    • Straight Through Left Hand Gates
      Straight Through Left Hand Gates
      $1,715.00
    • Straight Through Right Hand Gates
      Straight Through Right Hand Gates
      $1,715.00
  • Travel Distance

    • Up to 14'
      $0.00
    • Up to 21'
      $1,858.00
  • Number of Stops

    • 2 Stops
      $0.00
    • 3 Stops
      $1,429.00
    • 4 Stops
      $2,858.00
  • Travel Speed

    • 15 fpm
      $0.00
  • Enclosure and Options for Enclosure or Hoistway

    • Additional Landing Opening
      $1,072.00
    • Acrylic Enclosure Per 8 Foot Section (total # of 8 foot sections)
      $5,362.00
    • Extended Acrylic Enclosure (additional charge per foot over 8')
      $741.00
    • 36" Enclosure Style Door w/RDI Interlock
      $3,139.00
    • 30" Enclosure Style Door w/RDI Interlock
      $3,139.00
    • 36" Flush Door Frame w/RDI Interlock (shaft and slab by others)
      $1,358.00
    • 30" Flush Door Frame w/RDI Interlock (shaft and slab by others)
      $1,358.00
    • 36" Top Landing Gate w/RDI Interlock
      $1,422.00
  • Custom Powder Coat Color (Standard is RAL 9002)

    • Adds to Lead Time and Requires an Approval of a Sample
      $0.00
    • Elevator Car Custom Powder Coat
      $5,463.00
    • Track / Header Custom Powder Coat
      $858.00
    • 3 or 4 Landing Track Custom Powder Coat
      $1,000.00
    • Enclosure Custom Powder Coat (per floor)
      $1,852.00
    • Enclosure Door Custom Powder Coat (per door)
      $1,389.00
    • RAL Color Code
      $0.00
  • Call Stations

    • Radio Frequency Call Stations
      $0.00
    • Hard-Wired Call Stations
      $0.00
  • Options

    • Key Switch on Call Station (enclosed)
      $72.00
    • Wireless Key Fob (per Fob)
      $143.00
    • Clear Vision Panels for Car Walls
      $1,429.00
    • Automatic Return to Home Floor (for Hoistway Installation Only)
      $429.00
    • Automatic Door Opener
      $2,768.00
    • Honeywell Commercial Interlock for Doors by Others
      $858.00
    • State Compliance Package
      $572.00
    • Washington State Compliance Package
      $572.00
  • Shipping - Call for Price

    • Call for Shipping Price
      $0.00
