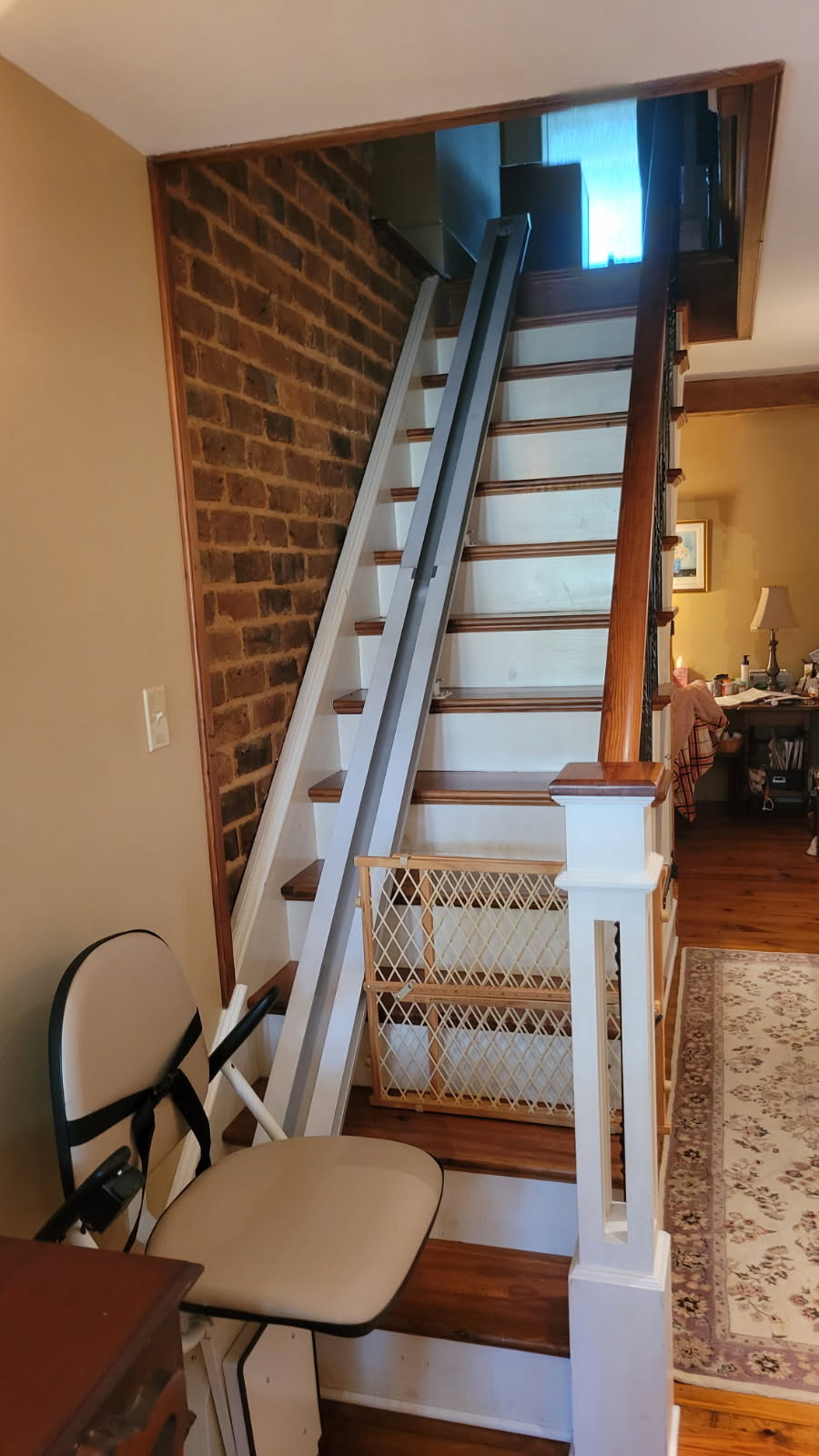

The Crest HD Stair Lift comes to you at a low price but feature rich.
- LIFETIME WARRANTY on All PARTS for the Original Purchaser *
- ETL listed A17.5 / B44 - A18.1
- Rack and pinion drive
- Interior gear rack
- 25 to 45 degree angle applications
- Quick adjustment limit cams

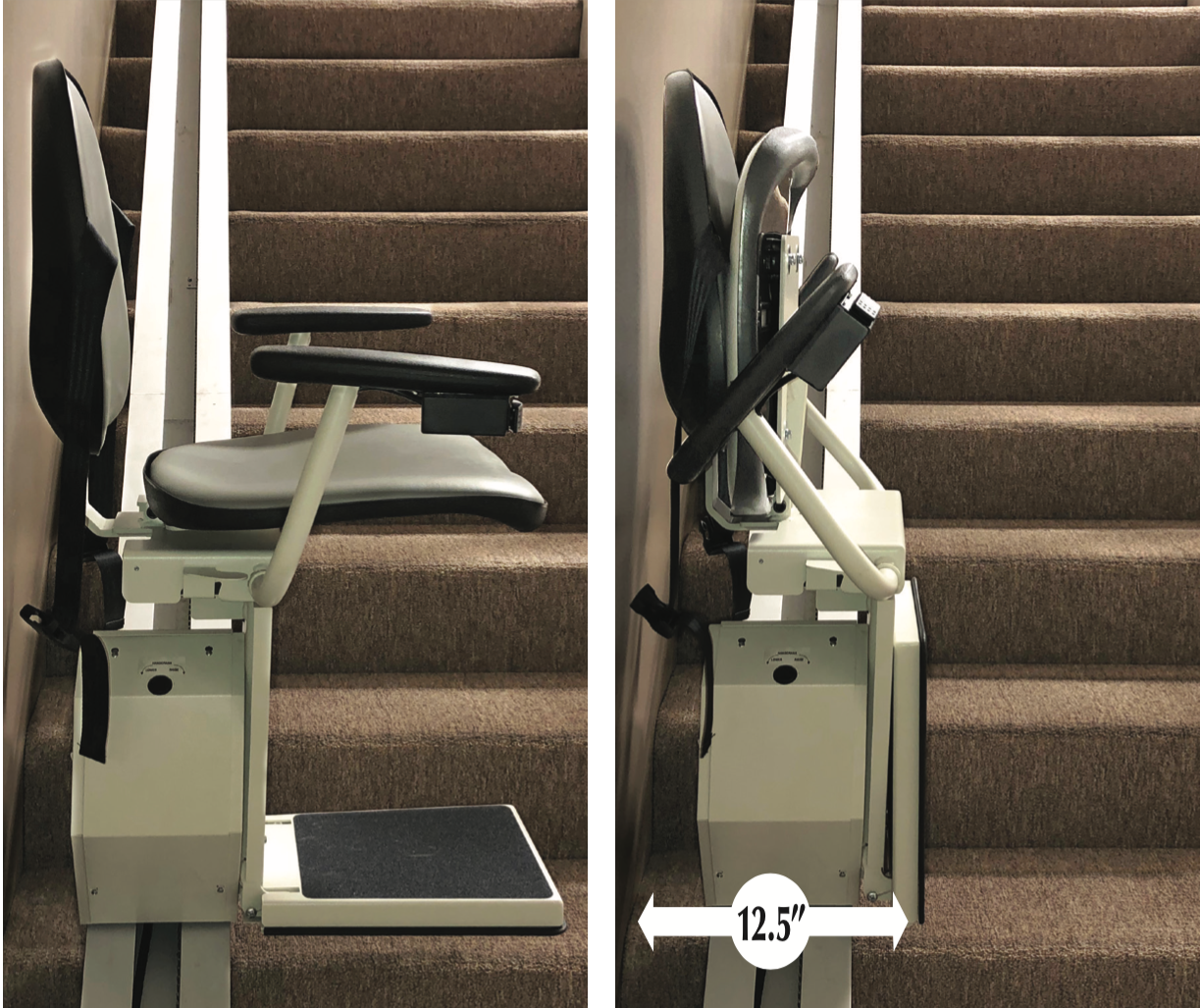

- Folds to 12.5" from the wall
- Wireless seat control
- Wireless remote controls for upper and lower landings
- 15' track standard, additional sections available
- Chassis mounted auxiliary control switch
- Obstruction audio beep notification
- Battery operated system
- Low profile stair-hugger track and bracket design - 2-1/2" track rest on stairs
- Constant pressure controls
- 3" to 6" horizontal extension at top landing (depending on angle)
- 90 degree swivel seat assembly at top landing
- ANODIZED aluminum rail

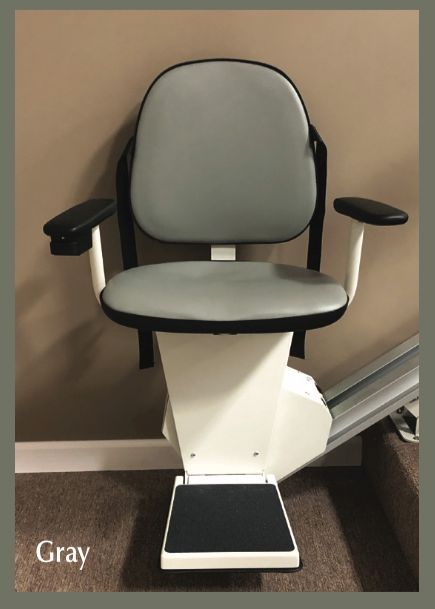

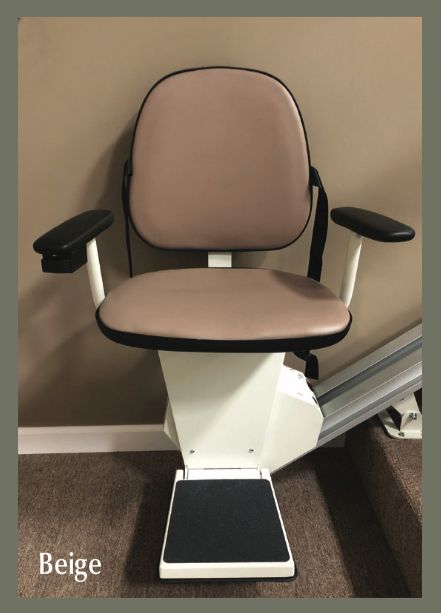

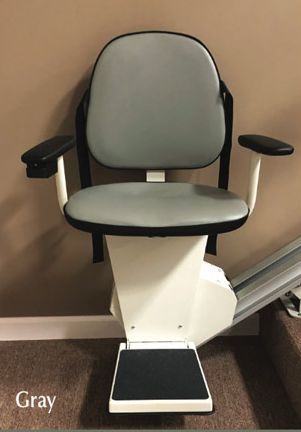

- Gray, Beige or Brown upholstery
- Seat belt
- Folding arm rest
- 350 lbs capacity
- Overspeed governor
- Proudly made in the USA!
LIFETIME WARRANTY ON PARTS TO ORIGINAL PURCHASER
| Drive Type | Rack and Pinion |
| Battery Backup (DC) | Yes |
| Self Installable | Yes |
| Basic Installation Included | No |
| Standard Capacity | 350 lb |
| Max Track Length, Standard | 15' |
| Track Material | Anodized Aluminum |
| Swivel Seat | Yes |
| Flip-Up Seat | Yes |
| Flip-Up Armrests | Yes |
| Constant Pressure Controls | Yes |
| Footrest Safety Sensor | No |
| Warranty | 2 years on batteries / Lifetime on all parts for the original purchaser |
| Track Width | 6.5" |
| Call Stations Included | 2 |
| Swivel Seat Rotation | 90 Degrees at top landing |
| Rail Angle, Min | 25° |
| Rail Angle, Max | 45° |
| Digital Diagnostics Display | No |
| Key Lock | No |
Stair Lift Orientation
- Right$0.00
- Left$0.00
Upholstery Color
Walnut Brown$0.00

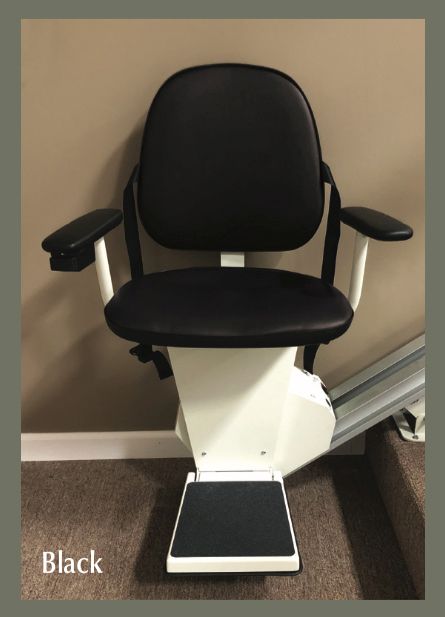

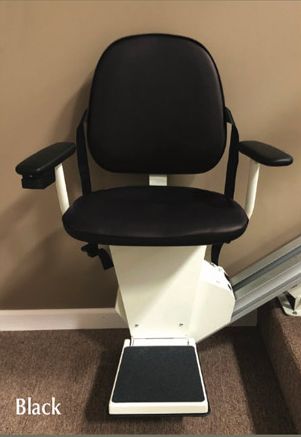

Black$0.00

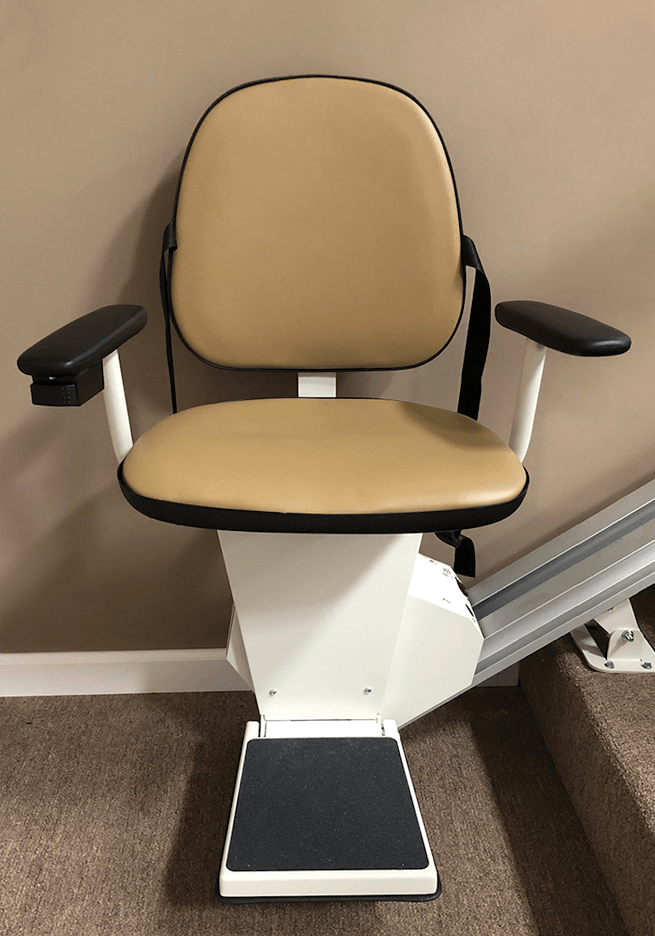

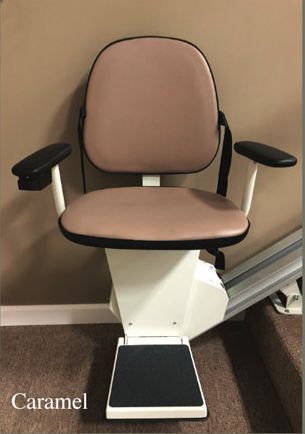

Caramel$0.00
Gray$0.00- Custom (also an additional cost for the material)$462.00
Seat Width
- Standard$0.00
- Arms Extended 2" on Either Side$230.00
Chassis / Track Custom Color
- Chassis Custom Color$1,847.00
- RAL Color for Chassis Powder Coat$0.00
- Track Custom Color$1,154.00
- RAL Color for Track Powder Coat$0.00
Track Length
- Standard 15' Of Track$0.00
- Additional Track (Per Foot) (More Than 1' of Additional Track Incurs Additional Shipping Cost)$77.00
Stair Lift Measurements According to Measurement Guide
- Step 1 - Total Staircase Length$0.00
- Step 2 - Top Landing to Bottom Step$0.00
- Step 3 - Stair Width$0.00
- Step 4 - Available Space at Bottom$0.00
- Step 5 - Height of One Step$0.00
- Step 6 - Length of One Tread$0.00
- Step 7 - One Step Front Edge to Front Edge$0.00
- Step 8 - Available Space at Top$0.00
Options

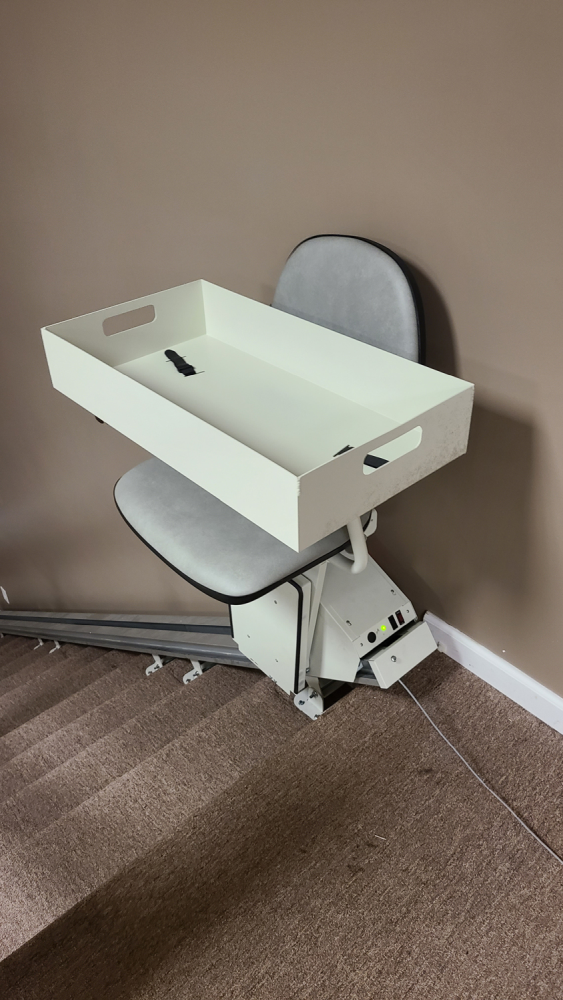

Cargo Tray Add-On$285.00- Wall Mounted Call/Send Controls (set)$154.00
- Additional Key Fob Remote$77.00
- Additional Standard Brackets$38.00
- Tall Brackets$54.00
- Key Switch$77.00
- Lockable Battery Disconnect$77.00
- Bluetooth Controller$124.00
Installation
- Self-Install$0.00
- Nationwide Installation Service$599.00
- Double Stair Lift Installation Service - Per Stair Lift$437.50
- Nationwide Measurement and Installation$749.00
Installation Special Cases
- Installation In Remote or Limited Access Location$345.00
- Installation On Concrete, Steel, or Tile Stairs$300.00
- Additional Charge for Installation in the States of: New York, and Massachusetts$150.00
- Existing Stair Lift Removal$499.00
Shipping
- Additional Shipping Charge for Unit with More Than 16' of Track$154.00
- Shipping to Alaska or Hawaii (Call for Price)$0.00
