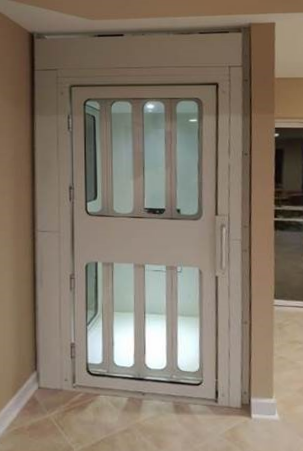

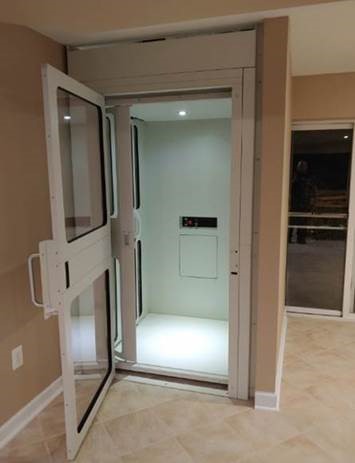

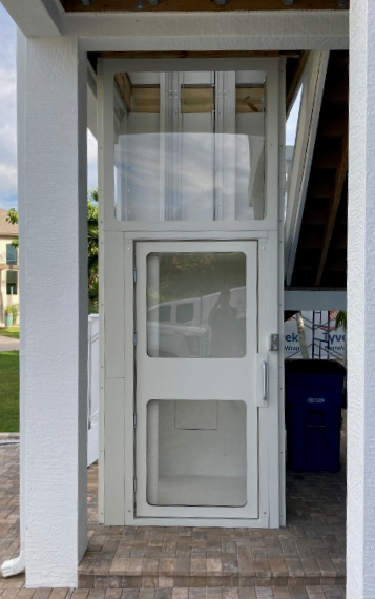

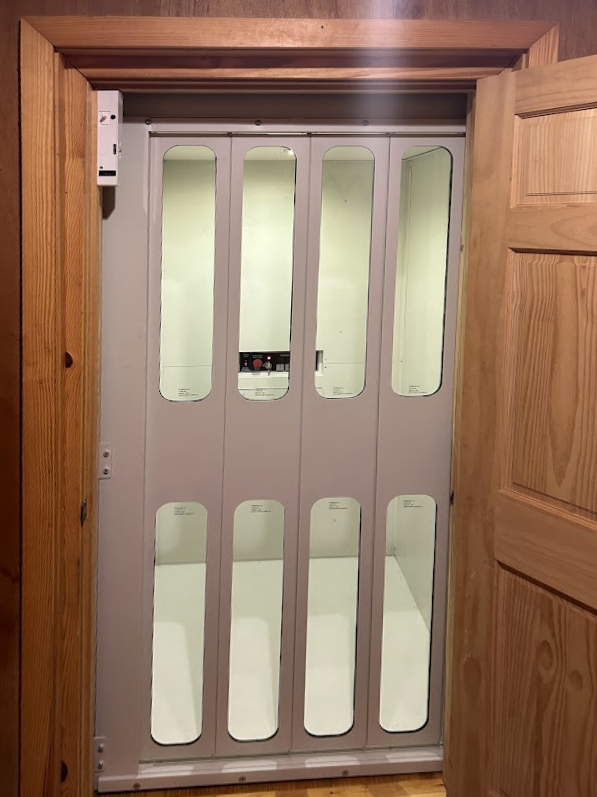

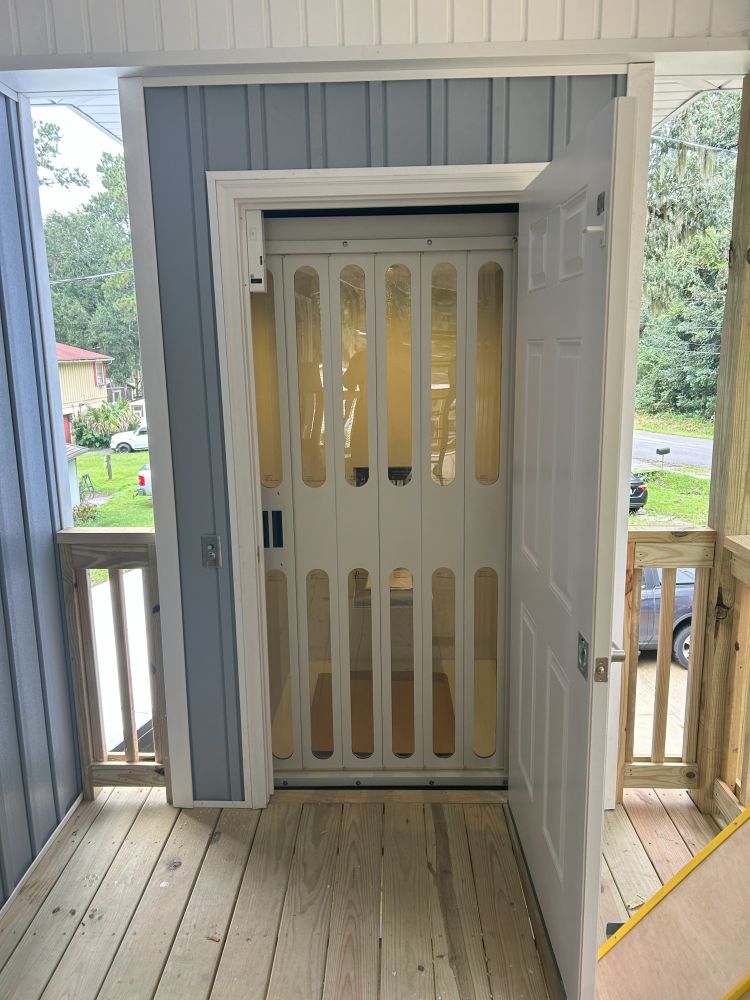

The Crest Enclosed Elevator can be installed in an elevator hoistway or in an optional enclosure providing you affordable and safe travel between floors of your home. The Crest Enclosed can accommodate a wheelchair and provides several options for entry/exit. There is no need for a pit nor a machine room on this battery powered, modern elevator.
Included Features:
Call for Shipping Price
Included Features:
-
GENERAL:
- Travel to 21' on 3-stop units at 15 fpm
- Capacity: 500 lbs
- Extruded 6063 grade aluminum track
- Dual winding drum drive with ¼" aircraft cables – 7,000 lb breaking strengths
- Maximum stops: 4

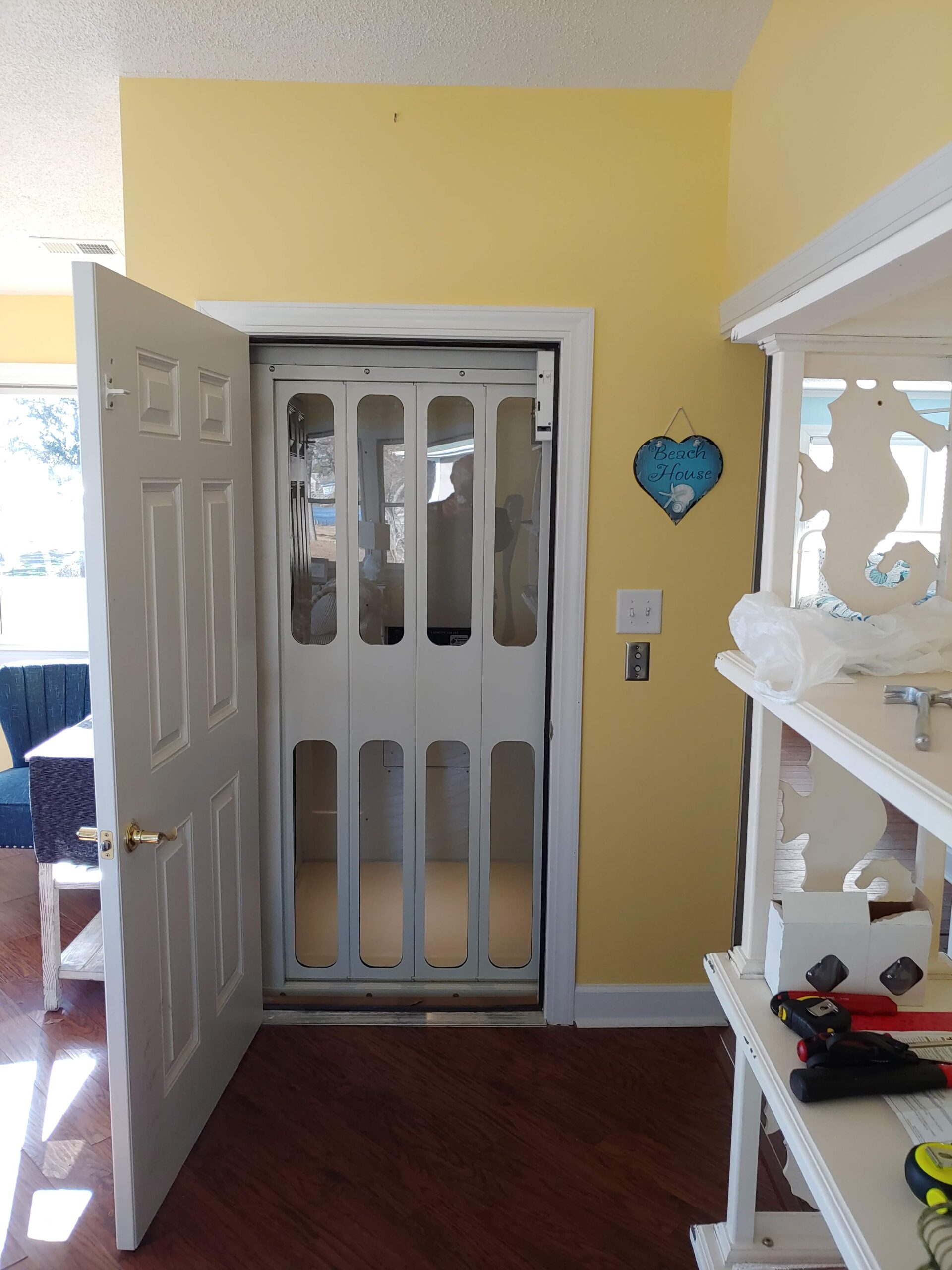

- Installed in hoistway/enclosure

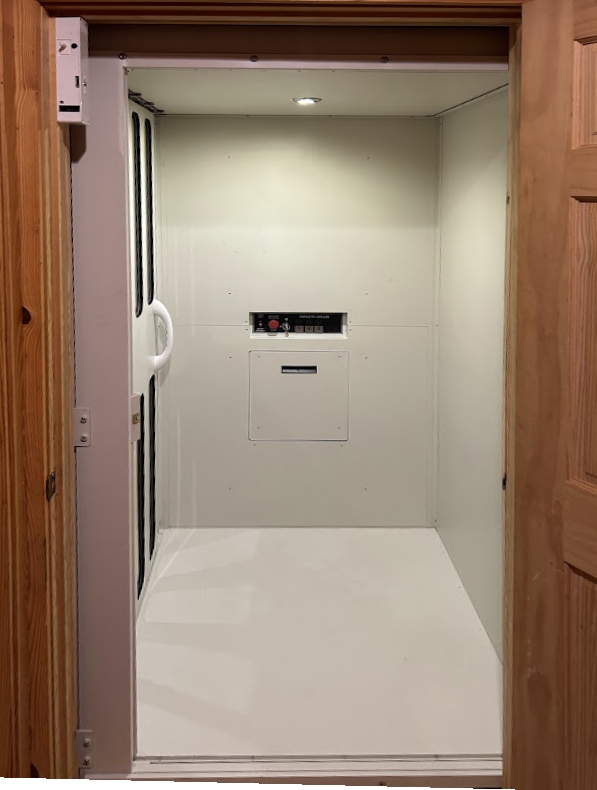

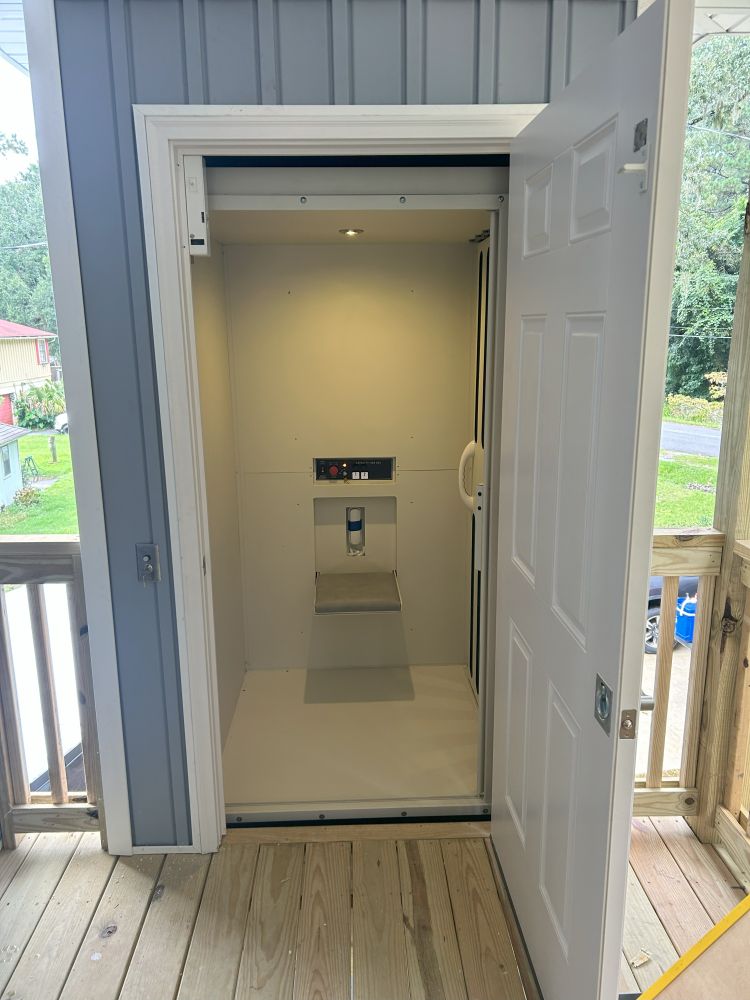

- Fold down car seat
- Finish: RAL 9002 powder coated with clear vision panels
- Automatic lighting system
- 36” wide car door opening (except for 90 degree applications)
- Single entry or 90 degree entry configurations
- Battery powered with charger
- Automatic operation
- RF wireless call stations
- Diagnostic indicator (LED)
- Emergency stop and alarm
- Slack cable device
- Car door switch
- Honeywell door interlock
- Phone
CAR:
CONTROLS:
SAFETY DEVICES:
Call for Shipping Price
| Applications | Residential |
| Capacity | 500 lb |
| Maximum Travel Distance | 31 |
| Speed (per minute) | 15' |
| Minimum Overhead Required | 90" |
| Drive | Travels with Car |
| Motor/Pump | DC Motor |
| Warranty | 2 year battery warranty – 3 year warranty on all other items. |
| Type | Dual Winding Drum |
| Cab Heights | 76 |
| Max Landings | 4 |
| Power Requirement | 110 VAC 2A |
| Pit Depth | Pit Not Required |
| Emergency | Emergency Stop, Telephone in Car |
| Safety | LED Light in Car, Non-Slip Floor, Safety Pan, Slack Cable |
Car Size
- 42"x42" Car$0.00
- 34"x34" Car$0.00
Car Configuration

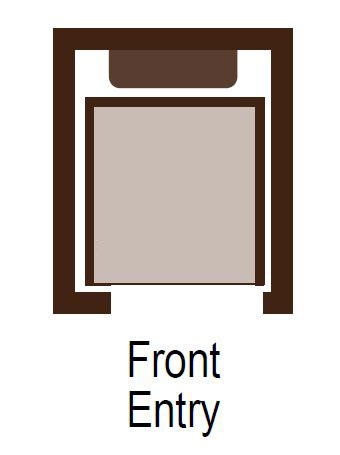

Front Entry Left Hand Gate (EZ6)$0.00
Front Entry Right Hand Gate (EZ6)$0.00

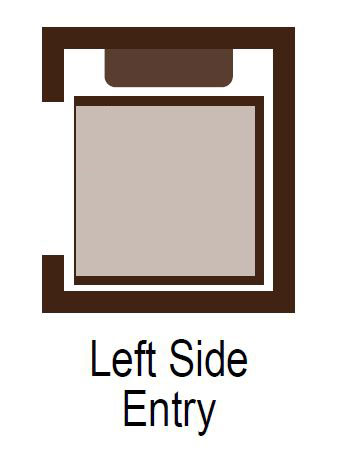

Left Side Entry Left Hand Gate (EZ6)$0.00
Left Side Entry Right Hand Gate (EZ6)$0.00

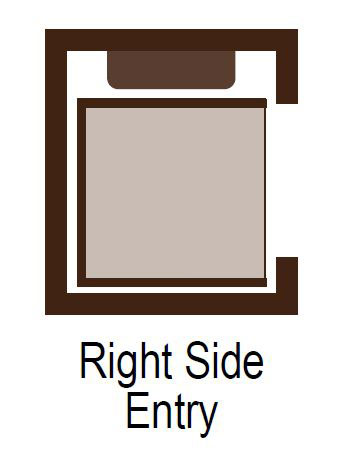

Right Side Entry Left Hand Gate (EZ6)$0.00
Right Side Entry Right Hand Gate (EZ6)$0.00

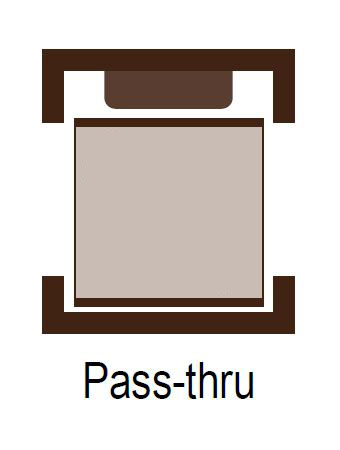

Straight Through Left Hand Gates (EZ6)$1,715.00
Straight Through Right Hand Gates (EZ6)$1,715.00

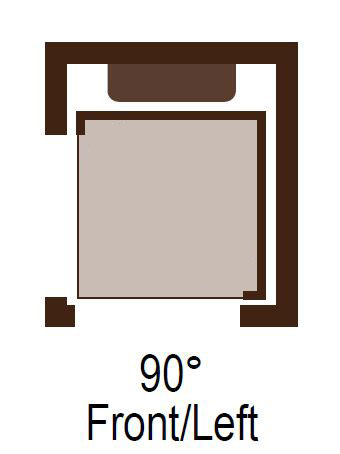

90 Degree Front/Left Entry (EZ6)$1,715.00
90 Degree Front/Right Entry (EZ6)$1,715.00- Custom Car Size (cannot exceed 12 ft/sq)$4,286.00
Travel Distance
- Up to 21'$0.00
- Over 21' to 31' (EZ6)$3,334.00
Number of Stops
- 2 Stops (EZ6)$0.00
- 3 Stops (EZ6)$1,429.00
- 4 Stops (EZ6)$2,858.00
Travel Speed
- 15 fpm$0.00

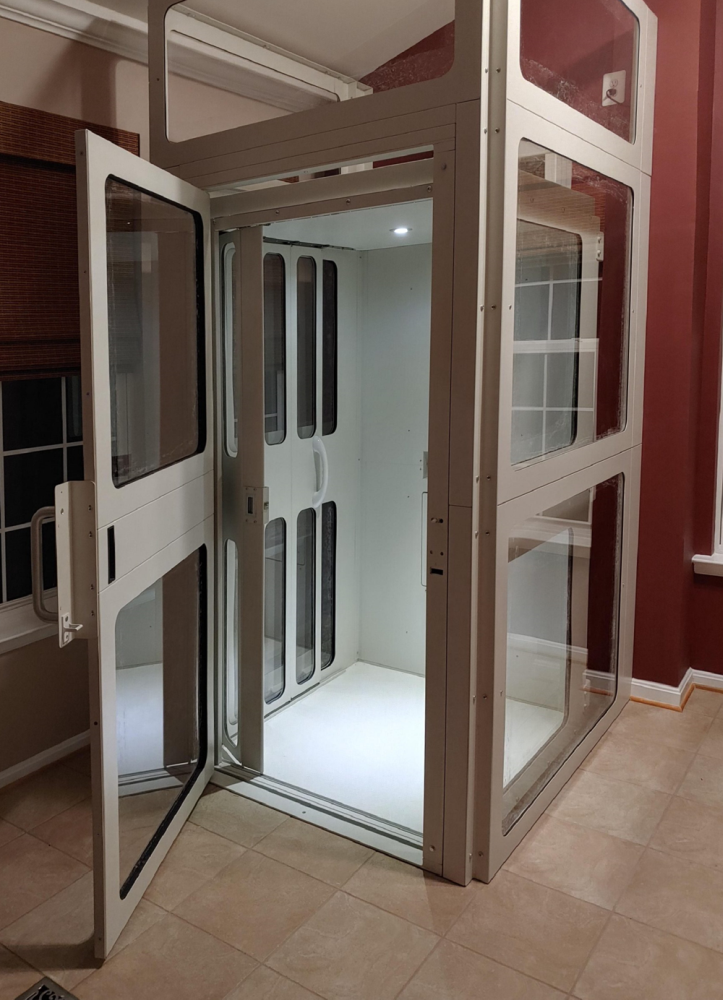

Enclosure and Options for Enclosure or Hoistway
- Acrylic Enclosure 8' Section$5,362.00
- Floors over 8' for Extended Enclosure (per floor)$741.00
- 36" Enclosure Style Door w/RDI Interlock$3,139.00
- 36" Flush Door Frame w/RDI Interlock (shaft and slab by others)$1,358.00
- 36" Fire Rated Steel Door w/RDI Interlock$5,429.00
- Clear Vision Panels in Car Walls$1,429.00
Custom Powder Coat Color (Standard is RAL 9002)
- Adds to Lead Time and Requires an Approval of a Sample$0.00
- Elevator Car Custom Powder Coat$5,463.00
- Track / Header Custom Powder Coat$858.00
- 3 or 4 Landing Track Custom Powder Coat$1,000.00
- Enclosure Custom Powder Coat (per floor)$1,852.00
- Enclosure Door Custom Powder Coat (per door)$1,389.00
- RAL Color Code$0.00
Options
- Key Switch on Call Station (enclosed)$72.00
- Wireless Key Fob (per Fob)$143.00
- Automatic Return to Home Floor$429.00
- Automatic Door Opener$2,768.00
- State Compliance Package$572.00
- Washington State Compliance Package$572.00
Shipping - Call for Price
- Call for Shipping Price$0.00
