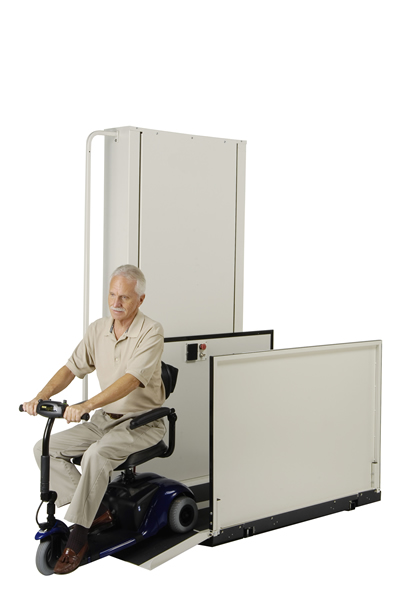

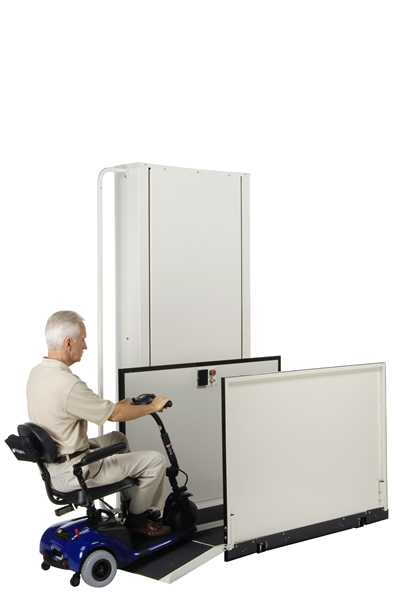

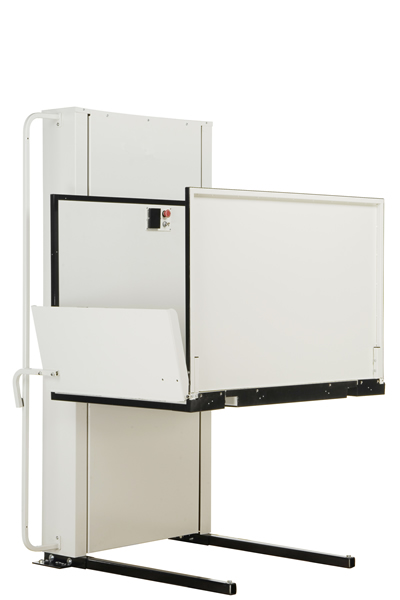

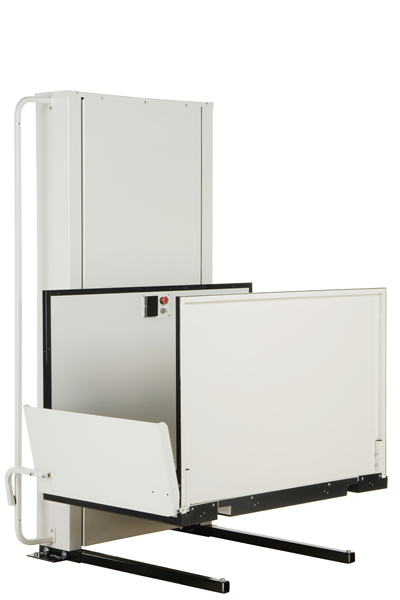

The AmeriGlide Hercules has an outstanding 750 pound carrying capacity. This vertical lift also comes with all the options you will need for convenient and safe use on a daily basis, including: a solid handrail, a solid platform with automatic folding ramp, a platform safety plate, keyed constant pressure controls, top and bottom limit switches, and an emergency stop. Restore access and freedom in your home with the AmeriGlide Hercules residential vertical lift!
In addition, the Hercules Junior has been designed to meet ASME A18.1 - Vertical Platform Lifts, CSA B44.1, and ASME 17.5 safety standards.
| Lifting Capacity | 750 lb |
| Standard Lift Height | 53" |
| Maximum Lift Height | 171" |
| Portable | No |
| Arrives Assembled | No |
| Drive System | Acme Screw Drive with Backup Nut |
| Optional Drive Systems | None Available |
| Battery Powered Option | Yes |
| Constant Pressure Platform Control | Yes |
| Emergency Stop Platform Control | Optional |
| Alarm Button | Optional |
| Keyed Platform Control | Optional |
| Call-Send Controls | Optional |
| Optional Call-Send Controls | Call-Send |
| Platform Type | Solid with Non-Skid Coating |
| Platform Size | 36" x 54" Platform (34" Usable Width) |
| Optional Platform Sizes | 36" x 60" (34" Usable Width), 42" x 60" (40" Usable Width) |
| Platform Configuration | Straight-Thru Access |
| Optional Platform Configurations | Same Side Entry-Exit, Adjacent Access |
| Upper Landing Gate | Optional |
| Upper Access Ramp | None Available |
| Lower Access Ramp | Fixed, Optional Automatic |
| Grab Rail | Standard |
| Guard Panel | Standard |
| Maximum Stops | 3 |
| Lift Speed (FPM) | 10 |
-
Lifting Height
-
53" Maximum Lift Height$0.00
-
77" Maximum Lift Height$700.00
-
101" Maximum Lift Height$1,800.00
-
125" Maximum Lift Height$3,300.00
-
149" Maximum Lift Height$4,400.00
-
171" Maximum Lift Height$5,500.00
-
Tower Orientation
Tower On The Left$0.00
Tower On The Right$0.00
-
Power Source
-
AC Powered$0.00
-
DC Powered, Provides 15 - 20 Cycles During Power Outage, Batteries Not Included$739.00
-
Platform Size
-
36" x 54" (34" Usable Width)$0.00
-
36" x 60" (34" Usable Width) - Available Feb 1st, 2010$245.00
-
42" x 60" (40" Usable Width) - Available Feb 1st, 2010$492.00
-
Platform Access
-
Straight Through$0.00
-
Same Side Entry & Exit with Solid Endwall (101" Lift or Higher Only)$369.00
-
90° Adjacent Access (34" x 54" Only)$368.00
-

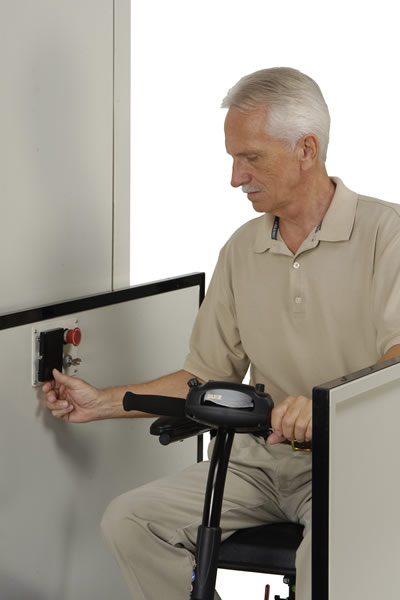

Platform Controls
-
Up / Down Paddle Controls$0.00
-
Keyed Platform Controls with Emergency Stop Alarm$245.00
-
Platform Options
-
Solid Platform$0.00
-
Safety Pan$0.00
-
Inside Hand Rail - 48"$0.00
-
18" Toeplate for Ground to Platform$0.00
-

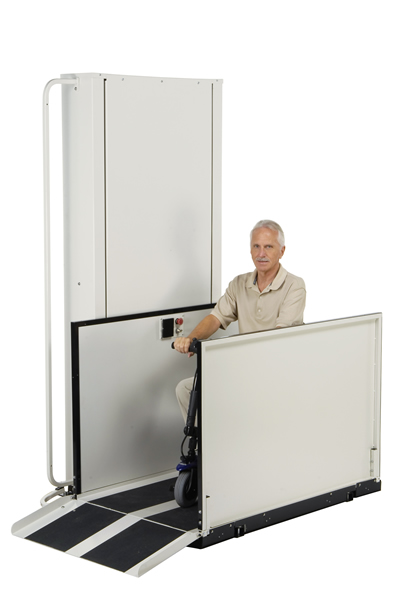

Automatic Ramp for Ground to Platform (not for use with Platform Gate)$122.00
-
Left Hinge Platform Gate - with Interlock (not for use with Adjacent Access Platform)$615.00
-
Right Hinge Platform Gate - with Interlock (not for use with Adjacent Access Platform)$615.00
-
Landing Controls
-
Call/Send Control, Rocker Switch (each)$119.00
-
Upper Keyed Call/Send Control, Rocker Switch (each)$239.00
-
Lower Keyed Call/Send Control, Rocker Switch (each)$239.00
-
Landing Options
-
Left Hinged Landing Gate - with Interlock & Call/Send Control (each)$739.00
-
Right Hinged Landing Gate - with Interlock & Call/Send Control (each)$739.00
-
Interlocks
-
Surface Mount Interlocks$0.00
-
Upper Left Hand EMI Interlock, Surface Mount (each)$369.00
-
Upper Right Hand EMI Interlock, Surface Mount (each)$369.00
-
Lower Left Hand EMI Interlock, Surface Mount (each)$369.00
-
Lower Right Hand EMI Interlock, Surface Mount (each)$369.00
-
Flush Mount Interlocks$0.00
-
Upper Electric Strike Interlock, Flush Mount, Metal Frame (each)$369.00
-
Lower Electric Strike Interlock, Flush Mount, Metal Frame (each)$369.00
-
Upper Electric Strike Interlock, Flush Mount, Wood Frame (each)$369.00
-
Lower Electric Strike Interlock, Flush Mount, Wood Frame (each)$369.00
-
Other Interlock Options$0.00
-
Wiring for Customer Provided Interlock (each)$159.00
-
Keyed Dead Latch for Flush Mount Electric Strike Interlock (each)$119.00
-
Accessories
-
Anchor Bolt Kit$0.00
-
Phone Jack$122.00
-
Emergency Light$122.00
-
Batteries for DC Option$241.00
-
Fascia Panel (per foot)$59.00
-
Additional Delivery Services
-
Free Liftgate Service on 53" Units As Requested$0.00
