Authorized AmeriGlide Dealer
 |
$2,149.00
+Shipping & Handling
|
Resources Available
Additional Images
|

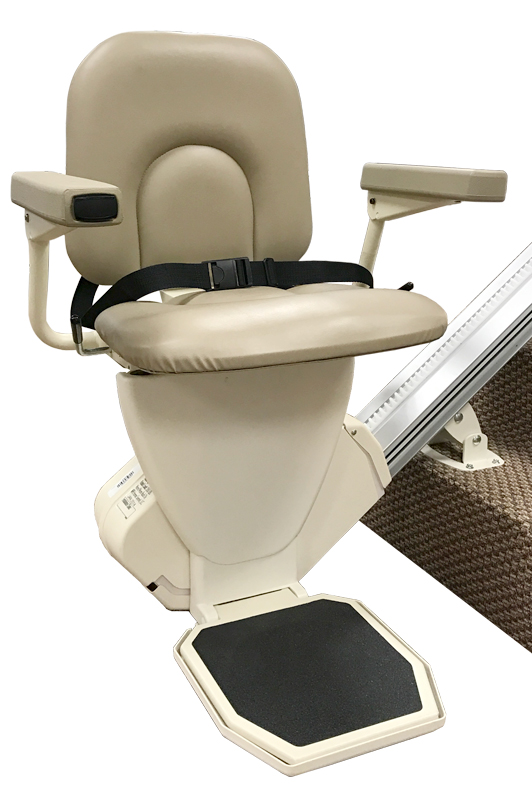

The Rave Stair Lift by AmeriGlide is the super compact model of stair lifts. If the width of your staircase if narrow, the Rave is a great solution. Also, if you just want to minimize the area taken up by your stair lift, it is a great option. Weight capacity is not comprimised with this slim model, with a 350 pound limit. When the swivel seat is folded up, the stair lift only sticks out 11 inches from the wall. AmeriGlide products always have safety as a top priority and it is no different with the Rave. The swivel seat and adjustable armrests make transferring from your wheelchair to stair lift a breeze. Call today to speak with a representative and you'll know that you're getting the lowest price possible.
* Customers living in Connecticut and Washington need to check with local code requirements.
| Drive Type | Rack & Pinion |
| Battery Backup (DC) | Yes |
| Self Installable | Yes |
| Basic Installation Included | No |
| Standard Capacity | 350 lb |
| Max Track Length, Standard | 16' |
| Max Track Length, Optional | 32' |
| Track Material | Aluminum |
| Swivel Seat | Yes |
| Flip-Up Seat | Yes |
| Flip-Up Armrests | Yes |
| Constant Pressure Controls | Yes |
| Footrest Safety Sensor | Yes |
| Unit Footprint, In Use | 22.5" |
| Unit Footprint, Parked | 10" |
| Track Footprint | 7" |
| Warranty | A 5-year period on all component parts of the lift, and a 10-year period on the motor and gear. |
| Track Width | 4.875" |
| Call Stations Included | Yes - Wireless |
-
Seat Style
-
Soft Vinyl Seat - Taupe$0.00
-
Track Length
-
Up to 16' of track$0.00
-
Extra Track, Per Foot, Up To 16' Extra$50.00
-
Options
-
Seat Belt$0.00
-
Call Stations
-
Top & Bottom Call-Send Stations$0.00
-
Orientation (looking UP the staircase)
-
The stair lift will be on the left$0.00
-
The stair lift will be on the right$0.00
-
Installation
-
Self Installation$0.00
Nationwide Installation$575.00
Nationwide Installation and Measurement Service$725.00
-
Installation Special Cases
-
Installation On Concrete, Steel, or Tile Stairs$300.00
-
Installation In Remote or Limited Access Location$285.00
-
Measurements
-
Please enter measurements in feet or inches. Customers using the Measurement Service can skip this step.$0.00
-
1. Overall length$0.00
-
2. Top stair to bottom stair$0.00
-
3. Staircase width$0.00
-
4. Bottom clearance$0.00
-
5. Rise of one step$0.00
-
6. Tread of one step$0.00
-
7. Diagonal$0.00
-
8. Door at the top$0.00
-
Need help measuring? Print out the "How to Measure" worksheet.$0.00
Product Reviews
