$3,439.00
+Shipping & Handling
|
Resources Available
Additional Images
|

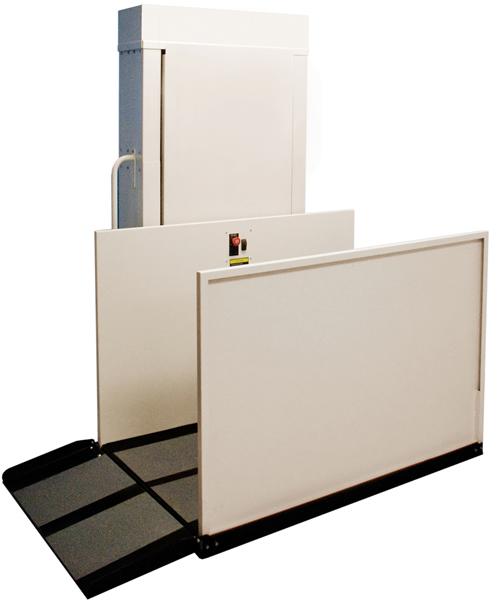

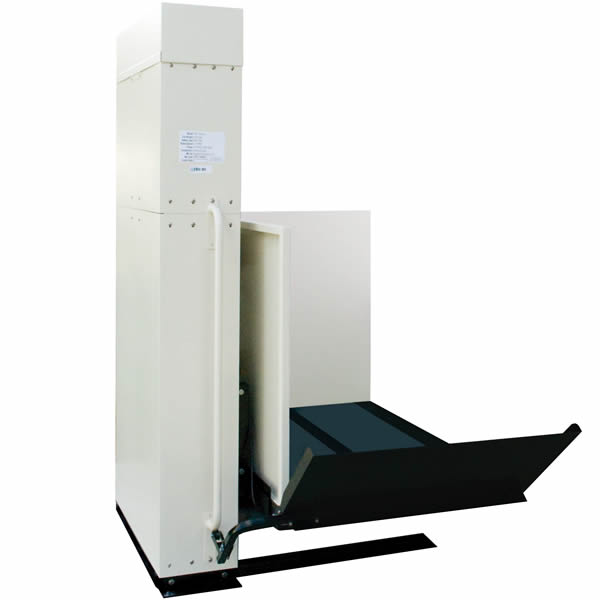

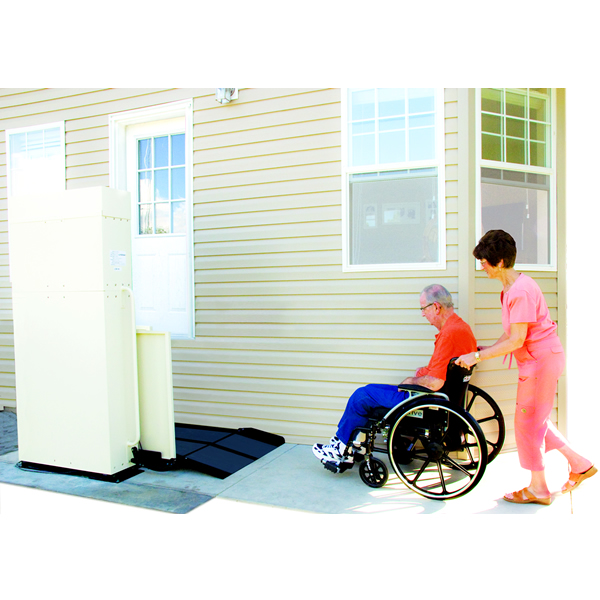

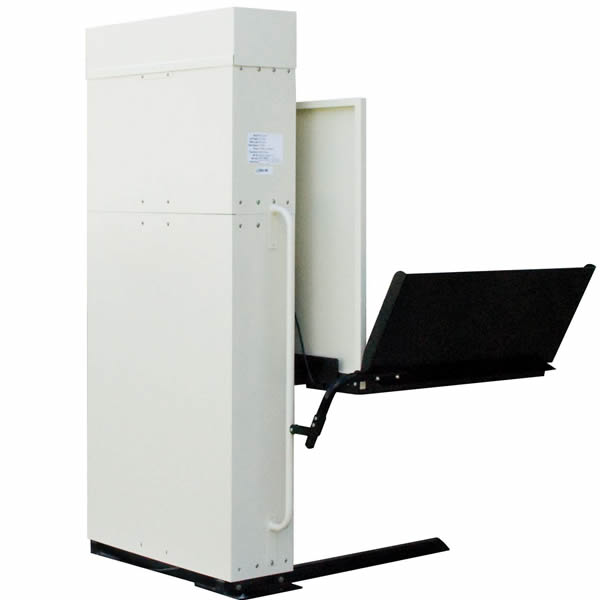

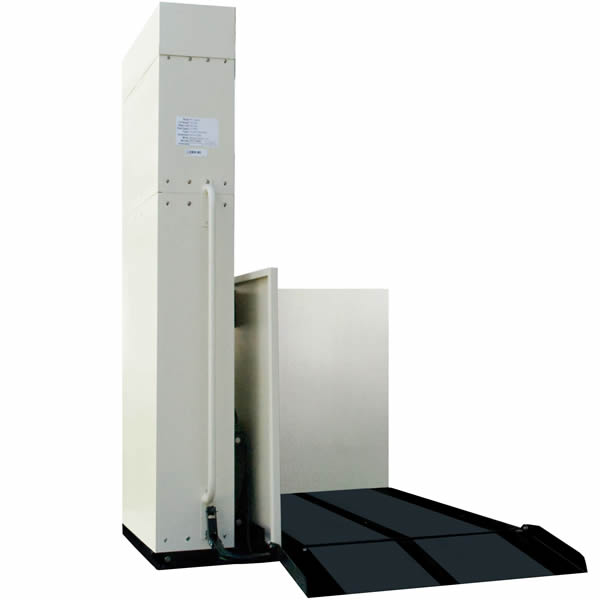

The AmeriGlide Hercules II Reconditioned Residential Vertical Wheelchair Lift has an outstanding 600-pound carrying capacity. This lift starts at a 53-inch height and can be upgraded to various heights up to 171 inches. The AmeriGlide Hercules II Reconditioned Residential wheelchair elevator provides a safe, reliable way to lift individuals up and down around your home at a very affordable price. This residential vertical wheelchair lift arrives mostly assembled, meaning you can have it fully assembled in less than an hour. And then installation is little more than setting the wheel chair lift in place. Check the installation section of our residential wheelchair lift guide for complete more information. You may initially intend to use the AmeriGlide Hercules II Reconditioned Residential outside of your home or on the inside. Regardless, this wheelchair lift is constructed to handle any environment. All AmeriGlide Hercules II Reconditioned Lifts come with a 30 day parts warranty.
We don't just sell price, although our prices are the best anywhere. Our AmeriGlide vertical platform lifts are manufactured to our specifications to meet our strict quality requirements. For the best result, and to make your residential vertical wheelchair lift plans a lot easier, you may want to review our residential wheelchair lift buyer's guide.
Any of our residential vertical wheelchair lifts can be built to your specifications and priced based upon height, and any additional options you may require. Taking delivery of a residential wheelchair elevator lift that exceeds 72 inches in height requires planning and an understanding of the process. Our buyer's guide for residential wheelchair elevator lifts has a section which explains these requirements as well as many others. We also offer free phone consultations at your convenience.
Call 1-800-470-8940 To Speak With Our Residential Wheelchair Lift Specialist For Information And Your Free Custom Blueprint.
| Lifting Capacity | 600 lb |
| Standard Lift Height | 53" |
| Maximum Lift Height Upgrade | 171" |
| Portable | No |
| Arrives Assembled | No |
| Drive System | Acme Screw Drive |
| Optional Drive Systems | None Available |
| Battery Powered Option | Yes |
| Constant Pressure Platform Control | Yes |
| Emergency Stop Platform Control | Included |
| Alarm Button | Optional Audible Alarm |
| Keyed Platform Control | Optional |
| Call-Send Controls | Optional Non-Keyed & Keyed Call-Send |
| Platform Type | Solid with Non-Skid Coating |
| Platform Size | 36" x 48" Platform (34" Usable Width) |
| Optional Platform Sizes | 36" x 54", 36" x 60", 42" x 54" (40" Usable Width) |
| Platform Configuration | Straight-Thru Access |
| Optional Platform Configurations | Same Side Entry-Exit, Adjacent Access |
| Upper Landing Gate | Optional |
| Upper Access Ramp | None Available |
| Lower Access Ramp | Automatic Folding, Optional Fixed |
| Grab Rail | Included |
| Guard Panel | 36", Optional 42" |
| Maximum Stops | 3 |
| Lift Speed (FPM) | 10 |
-
Lifting Height
-
53" Max Lift Height, Acme Screw Drive$0.00
-
77" Max Lift Height, Acme Screw Drive$660.00
-
101" Max Lift Height, Acme Screw Drive$1,680.00
-
125" Max Lift Height, Acme Screw Drive$3,150.00
-
149" Max Lift Height, Ball Screw Drive$4,780.00
-
171" Max Lift Height, Ball Screw Drive$6,040.00
-
Crating & Assembly
-
No Crating - Some assembly is required.$0.00
-
36" x 48" or 36" x 54" Platform$0.00
-
53" Unit Shipped Crated & Fully Assembled$461.00
-
36" x 60" or 42" x 54" Platform - Requires Extra Large Crate$0.00
-
53" Unit Shipped Crated & Fully Assembled$691.00
-
Tower Orientation
Tower On The Left$0.00
Tower On The Right$0.00
-
Power Source
-
AC Powered$0.00
-
DC Battery Powered - Battery provides 15-20 cycles during power outage. Batteries included.$1,000.00
-
Electronics
-
A standard electronics control board will work with a landing gate, one call/send only, and 36" side walls.$0.00
-
Standard Electronics Control Board$0.00
-
A commercial electronics control board allows operation with doors, gates, multiple call/send controls, and other devices.$0.00
-
42" high side walls require a Commercial Electronics Control Board$0.00
-
Commercial Electronics Control Board$309.00
-
Ball Screw Drive Models Include A Commercial Electronics Control Board$0.00
-
Portable Package
-
None$0.00
Portable Package
53" or 77" Max Lift Height
36" x 54" Straight Thru Platform
Platform Gate On Exit Side Included$1,614.00-
Portable Package also includes an Automatic Ramp and Safety Pan$0.00
-
Platform Type
-
36" x 48" Straight Thru (34" Usable Width)$0.00
-
36" x 54" Straight Thru (34" Usable Width)$154.00
-
36" x 60" Straight Thru (34" Usable Width)$245.00
-
42" x 54" Straight Thru (40" Usable Width)$491.00
-
36" x 54" 90 Degree (34" Usable Width)$368.00
-
36" x 60" 90 Degree (34" Usable Width)$491.00
-
42" x 54" 90 Degree (40" Usable Width)$738.00
-
Platform Access
-
Straight Thru or 90 Degree$0.00
-
Same Side Entry & Exit - Lift height must be 101" or greater.$368.00
-
Platform Gate
-
Lifts 8' and over that are not in a hoistway require a platform gate or an interlock for a customer provided gate.$0.00
-
Platform gates require 42" high side walls (found below).$0.00
-
No Platform Gate$0.00
-
Left Swing 36" Wide Straight Thru Platform Gate with Interlock$614.00
-
Right Swing 36" Wide Straight Thru Platform Gate with Interlock$614.00
-
Left Swing 42" Wide Straight Thru Platform Gate with Interlock$860.00
-
Right Swing 42" Wide Straight Thru Platform Gate with Interlock$860.00
-
Left Swing 90 Degree Platform Gate with Interlock$984.00
-
Right Swing 90 Degree Platform Gate with Interlock$984.00
-
Platform Controls
-
Paddle Controls with Emergency Stop Button$0.00
-
Platform Control Options
-
Emergency Alarm & Lighted Button$209.00

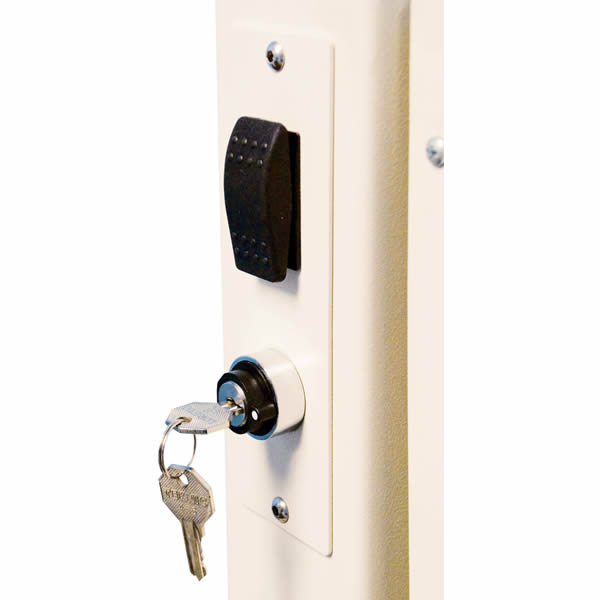

Keylocks for Controls$35.00
-
Platform Options
-
Solid Platform with Safety Pan$0.00
-
Inside Grab Bar$0.00
-
42" high side walls are required for lifts 8' and taller.$0.00
-
42" high side walls are required for ANY lift with a platform gate.$0.00
-
36" High Side Walls$0.00
-
42" High Side Walls$153.00
-
42" high side walls require a Commercial Electronics Control Board$0.00
-
Ramp Type & Pit Switch
-

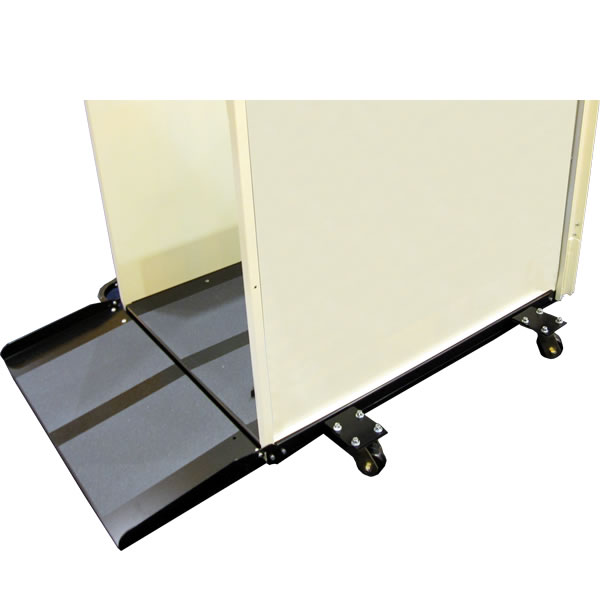

Automatic Ramp$0.00
-
Fixed Ramp$0.00
-
No Ramp with Pit Switch Option$123.00
-
Landing Controls
-
Call/Send Control Station (each)$119.00
-
Wireless Call/Send Control Stations (pair)$479.00
-
Keylocks for Controls (each)$34.00
-
Landing Gate
-
Landing gates below include an interlock and a call/send control built into the gate.$0.00
-
Left Swing 36" Wide Landing Gate with Interlock & Call/Send Control (each)$809.00
-
Right Swing 36" Wide Landing Gate with Interlock & Call/Send Control (each)$809.00
-
Left Swing 42" Wide Landing Gate with Interlock & Call/Send Control (each)$979.00
-
Right Swing 42" Wide Landing Gate with Interlock & Call/Send Control (each)$979.00
-
Keylocks for Controls (each)$34.00
-
Landing gates below include an interlock only.$0.00
-
Left Swing 36" Wide Landing Gate with Interlock Only (each)$739.00
-
Right Swing 36" Wide Landing Gate with Interlock Only (each)$739.00
-
Left Swing 42" Wide Landing Gate with Interlock Only (each)$909.00
-
Right Swing 42" Wide Landing Gate with Interlock Only (each)$909.00
-
Keylocks for Controls (each)$34.00
-
Fire Rated Doors
-
No Door$0.00
-
Fire-Rated Hoistway Door with EMI - Left (each)$2,079.00
-
Fire-Rated Hoistway Door with EMI - Right (each)$2,079.00
-
Fire-Rated Hoistway Door with Electric Strike - Left (each)$2,219.00
-
Fire-Rated Hoistway Door with Electric Strike - Right (each)$2,219.00
-
Interlocks
-
Surface mount EMI interlocks below are for a customer provided door or gate.$0.00
-
Left Swing Top Landing Door/Gate EMI Interlock (each)$409.00
-
Right Swing Top Landing Door/Gate EMI Interlock (each)$409.00
-
Flush mount electric strike interlocks below are for a customer provided door or gate.$0.00
-
Top Landing Electric Strike Interlock - Metal Frame (each)$409.00
-
Bottom Landing Electric Strike Interlock - Metal Frame (each)$409.00
-
Top Landing Electric Strike Interlock - Wood Frame (each)$409.00
-
Bottom Landing Electric Strike Interlock - Wood Frame (each)$409.00
-
Other Interlock Options$0.00
-
Keyed Dead Latch for Flush Mount Electric Strike Interlock (each)$139.00
-
Wiring For Interlock (per landing)$159.00
-
Accessories
-
Anchor Bolt Kit$0.00
-
Tower Braces$154.00
-
3rd Stop Wiring Charge$492.00
-
Phone Jack$138.00
-
Emergency Light$137.00
-
Fascia Panel (per foot)$59.00
-
Automatic Door Opener - Requires Upgraded Electronics$2,349.00
-
Additional Delivery Services
-
Free Liftgate Service on 53" Units As Requested$0.00
