$3,999.00
+Shipping & Handling
|

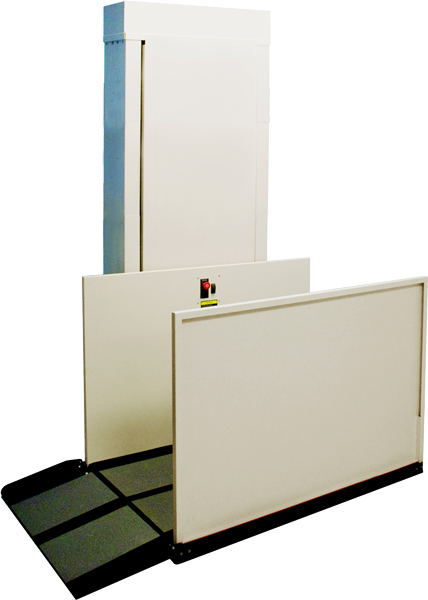

The AmeriGlide Hercules II Recondtioned Commercial Vertical Wheelchair Lift has an outstanding 600 pound carrying capacity. This commercial vertical wheelchair lift comes with the options you will need for convenient and safe use on a daily basis, including: a solid handrail, a solid platform with fixed toeplate, a platform safety plate, constant pressure controls, top and bottom limit switches, and an emergency stop. By packaging the basic options for commercial use we have been able to offer this commercial wheelchair lift at a significant savings over piecemeal configurations. All AmeriGlide Hercules II Reconditioned Lifts come with a 30 day parts warranty.
We don't just sell price, although our prices are the best anywhere. We manufacture many of our own lifts and provide them to you direct. All commercial vertical wheelchair lifts are built to your specifications and priced based upon height, and any additional options needed to comply with local and regional code. In addition, all commercial wheelchair lifts require special arrangements for delivery based upon your unique site requirements, and the configuration of the lift. Our buyer's guide for commercial wheelchair lifts explains these requirements as well as many others. We also offer free phone consultations at your convenience.
All of our lift offerings in the commercial wheelchair lift category can be designed to meet ASME A18.1 - Vertical Platform Lifts, CSA B44.1, and ASME 17.5 safety standards. We also work directly with local and regional inspectors to insure that your commercial wheelchair lift design will meet their expectations.
Call Our Commercial Wheelchair Lift Specialists For Information And Your Free Custom Blueprint 1-800-470-8940
| Lifting Capacity | 600 lb |
| Standard Lift Height | 53" |
| Maximum Lift Height Upgrade | 171" |
| Portable | No |
| Arrives Assembled | No |
| Drive System | Acme Screw Drive |
| Optional Drive Systems | None Available |
| Battery Powered Option | Yes |
| Constant Pressure Platform Control | Yes |
| Emergency Stop Platform Control | Included |
| Alarm Button | Optional Audible Alarm |
| Keyed Platform Control | Optional |
| Call-Send Controls | Optional Non-Keyed & Keyed Call-Send |
| Platform Type | Solid with Non-Skid Coating |
| Platform Size | 36" x 54" (34" Usable Width) |
| Optional Platform Sizes | 36" x 60" (34" Usable Width), 42" x 54" (40" Usable Width) |
| Platform Configuration | Straight-Thru Access |
| Optional Platform Configurations | Same Side Entry-Exit, Adjacent Access |
| Upper Landing Gate | Optional |
| Upper Access Ramp | None Available |
| Lower Access Ramp | Fixed, Optional Automatic |
| Grab Rail | Included |
| Guard Panel | 42" |
| Maximum Stops | 3 |
| Lift Speed (FPM) | 10 |
-
Lifting Height
-
53" Max Lift Height, Acme Screw Drive$0.00
-
77" Max Lift Height, Acme Screw Drive$660.00
-
101" Max Lift Height, Acme Screw Drive$1,680.00
-
125" Max Lift Height, Acme Screw Drive$3,150.00
-
149" Max Lift Height, Ball Screw Drive$4,500.00
-
171" Max Lift Height, Ball Screw Drive$5,760.00
-
Crating & Assembly
-
No Crating - Some assembly is required.$0.00
-
36" x 54" Platform$0.00
-
53" Unit Shipped Crated & Fully Assembled$461.00
-
36" x 60" or 42" x 54" Platform - Requires Extra Large Crate$0.00
-
53" Unit Shipped Crated & Fully Assembled$691.00
-
Tower Orientation
Tower On The Left$0.00
Tower On The Right$0.00
-
Power Source
-
AC Powered$0.00
-
DC Battery Powered - Battery provides 15-20 cycles during power outage. Batteries included.$1,000.00
-
Electronics
-
A commercial electronics control board allows operation with doors, gates, multiple call/send controls, and other devices.$0.00
-
Commercial Electronics Control Board$0.00
-
Portable Package
-
None$0.00
Portable Package
53" or 77" Max Lift Height
36" x 54" Straight Thru Platform
Platform Gate On Exit Side Included$1,614.00-
Portable Package also includes an Automatic Ramp and Safety Pan$0.00
-
Platform Type
-
36" x 54" Straight Thru (34" Usable Width)$0.00
-
36" x 60" Straight Thru (34" Usable Width)$245.00
-
42" x 54" Straight Thru (40" Usable Width)$491.00
-
36" x 54" 90 Degree (34" Usable Width)$368.00
-
36" x 60" 90 Degree (34" Usable Width)$491.00
-
42" x 54" 90 Degree (40" Usable Width)$738.00
-
Platform Access
-
Straight Thru or 90 Degree$0.00
-
Same Side Entry & Exit - Lift height must be 101" or greater.$368.00
-
Platform Gate
-
Lifts 8' and over that are not in a hoistway require a platform gate or an interlock for a customer provided gate.$0.00
-
No Platform Gate$0.00
-
Left Swing 36" Wide Straight Thru Platform Gate with Interlock$614.00
-
Right Swing 36" Wide Straight Thru Platform Gate with Interlock$614.00
-
Left Swing 42" Wide Straight Thru Platform Gate with Interlock$860.00
-
Right Swing 42" Wide Straight Thru Platform Gate with Interlock$860.00
-
Left Swing 90 Degree Platform Gate with Interlock$984.00
-
Right Swing 90 Degree Platform Gate with Interlock$984.00
-
Platform Controls
-
Paddle Controls with Emergency Stop Button$0.00
-
Platform Control Options
-
Emergency Alarm & Lighted Button$209.00
Keylocks for Controls$35.00
-
Platform Options
-
42" High Side Walls$0.00
-
Solid Platform with Safety Pan$0.00
-
Inside Grab Bar$0.00
-
Ramp Type & Pit Switch
-
Fixed Ramp$0.00
-
Automatic Ramp$0.00
-
No Ramp with Pit Switch Option$123.00
-
Landing Controls
-
Call/Send Control Station (each)$119.00
-
Wireless Call/Send Control Stations (pair)$479.00
-
Keylocks for Controls (each)$34.00
-
Landing Gate
-
Landing gates below include an interlock and a call/send control built into the gate.$0.00
-
Left Swing 36" Wide Landing Gate with Interlock & Call/Send Control (each)$809.00
-
Right Swing 36" Wide Landing Gate with Interlock & Call/Send Control (each)$809.00
-
Left Swing 42" Wide Landing Gate with Interlock & Call/Send Control (each)$979.00
-
Right Swing 42" Wide Landing Gate with Interlock & Call/Send Control (each)$979.00
-
Keylocks for Controls (each)$34.00
-
Landing gates below include an interlock only.$0.00
-
Left Swing 36" Wide Landing Gate with Interlock Only (each)$739.00
-
Right Swing 36" Wide Landing Gate with Interlock Only (each)$739.00
-
Left Swing 42" Wide Landing Gate with Interlock Only (each)$909.00
-
Right Swing 42" Wide Landing Gate with Interlock Only (each)$909.00
-
Keylocks for Controls (each)$34.00
-
Fire Rated Doors
-
No Door$0.00
-
Fire-Rated Hoistway Door with EMI - Left (each)$2,079.00
-
Fire-Rated Hoistway Door with EMI - Right (each)$2,079.00
-
Fire-Rated Hoistway Door with Electric Strike - Left (each)$2,219.00
-
Fire-Rated Hoistway Door with Electric Strike - Right (each)$2,219.00
-
Interlocks
-
Surface mount EMI interlocks below are for a customer provided door or gate.$0.00
-
Left Swing Top Landing Door/Gate EMI Interlock (each)$409.00
-
Right Swing Top Landing Door/Gate EMI Interlock (each)$409.00
-
Flush mount electric strike interlocks below are for a customer provided door or gate.$0.00
-
Top Landing Electric Strike Interlock - Metal Frame (each)$409.00
-
Bottom Landing Electric Strike Interlock - Metal Frame (each)$409.00
-
Top Landing Electric Strike Interlock - Wood Frame (each)$409.00
-
Bottom Landing Electric Strike Interlock - Wood Frame (each)$409.00
-
Other Interlock Options$0.00
-
Keyed Dead Latch for Flush Mount Electric Strike Interlock (each)$139.00
-
Wiring For Interlock (per landing)$159.00
-
Accessories
-
Anchor Bolt Kit$0.00
-
Tower Braces$154.00
-
3rd Stop Wiring Charge$492.00
-
Phone Jack$138.00
-
Emergency Light$137.00
-
Fascia Panel (per foot)$59.00
-
Automatic Door Opener - Requires Upgraded Electronics$2,349.00
-
Additional Delivery Services
-
Free Liftgate Service on 53" Units As Requested$0.00
