AmeriGlide Atlas Residential Vertical Wheelchair Lift

AmeriGlide Atlas Residential Vertical Wheelchair Lift
$4,799.00
Free Shipping!
Product Review
(1)
(80)
Additional Images

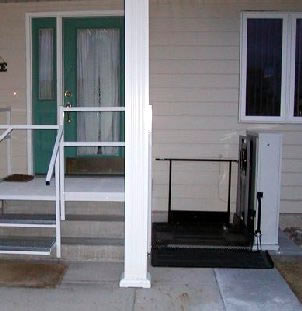

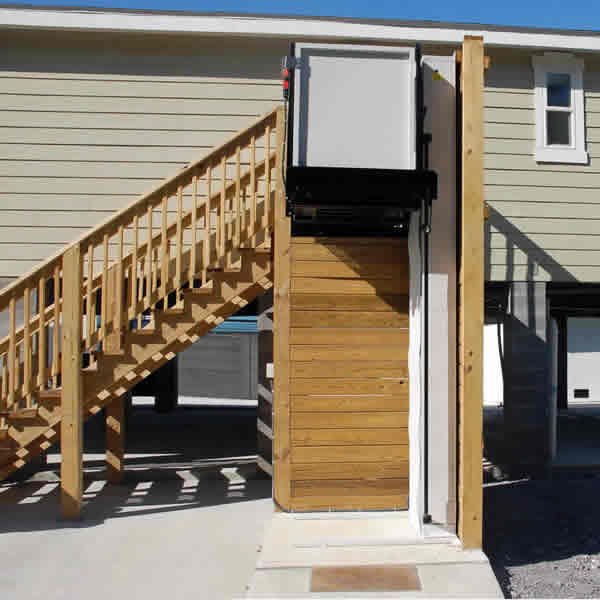

  • Residential Example 1
  • Residential Example 2
  • Residential Example 3
Product Box Top

AmeriGlide's Atlas is the premier residential wheelchair lift. A residential lift may go by many names, and we have customers that call asking for a variety of products. The Atlas is so versatile it can be referred to as a wheelchair elevator, a vertical wheelchair lift, or the most common name, a wheelchair lift. The primary reason for such a large variety of views is due to the degree to which the Atlas can be customized. We seldom see two spaces that are identical when it comes to residential wheelchair elevators. Accordingly, we make every effort to insure that your unique requirements are explained, properly planned, and priced in a way that results in the lowest possible cost.



Call 1-800-470-8940 To Speak With Our Residential Wheelchair Lift Specialist For Information And Your Free Custom Blueprint.



We don't just sell price, although our prices are the best anywhere. We manufacture many of our own lifts and provide them to you directly. For the best result, and to make your residential vertical wheelchair lift plans a lot easier, you may want to review our residential wheelchair lift buyer's guide.



Any of our residential vertical wheelchair lifts can be built to your specifications and priced based upon height, and any additional options you may require. Taking delivery of a residential wheelchair elevator lift that exceeds 72 inches in height requires planning and an understanding of the process. Our buyer's guide for residential wheelchair elevator lifts has a section which explains these requirements as well as many others. We also offer free phone consultations at your convenience.



Call 1-800-470-8940 To Speak With Our Residential Wheelchair Lift Specialist For Information And Your Free Custom Blueprint.



We pride ourselves on the extra service we provide with installations and installation planning. More often than not you will find that a shaft enclosure will be required for the taller model inside wheelchair elevators. We offer free planning guides and blueprints to make this process easier. We highly recommend that you review and bookmark our wheelchair lift guidelines.

Lifting Capacity 550 lb
Standard Lift Height 72"
Maximum Lift Height Upgrade 144"
Portable No
Arrives Assembled No
Drive System Direct Worm-Gear & Screw-Nut
Optional Drive Systems None Available
Battery Powered Option Yes
Constant Pressure Platform Control Yes
Emergency Stop Platform Control Included
Alarm Button None Available
Keyed Platform Control Included
Call-Send Controls Optional Call-Send, Call-Send with Key, Toggle, Toggle with Key
Platform Type Expanded Metal
Platform Size 34" x 54"
Optional Platform Sizes 40" x 54"
Platform Configuration Straight-Thru Access
Optional Platform Configurations Adjacent Access
Upper Landing Gate Optional
Upper Access Ramp None Available
Lower Access Ramp Automatic Folding
Grab Rail Included
Guard Panel Optional
Maximum Stops 3
  • Lifting Height

    • No Image
      72" Maximum Lift Height
      $0.00
    • No Image
      96" Maximum Lift Height
      $1,700.00
    • No Image
      120" Maximum Lift Height
      $2,250.00
    • No Image
      144" Maximum Lift Height
      $3,000.00
  • Tower Orientation

    • No Image
      Tower On The Left
      $0.00
    • No Image
      Tower On The Right
      $0.00
  • Power Source

    • No Image
      AC Powered
      $0.00
    • No Image
      AC Powered with DC Battery Backup (Batteries Not Included)
      $1,572.00
  • Platform Size

    • No Image
      34" x 54" Platform
      $0.00
    • No Image
      40" x 54" Platform (For Adjacent Access Only)
      $0.00
  • Platform Access

    • No Image
      Straight Through
      $0.00
    • No Image
      90° Adjacent Access
      $228.58
    • No Image
      Same Side Entry / Exit (requires Solid End Wall)
      $471.43
  • Platform Gate

    • No Image
      No Platform Gate
      $0.00
    • No Image
      Platform Gate with Interlock
      $928.58
  • Platform Controls

    • No Image
      Paddle Controls with Emergency Stop Button
      $0.00
  • Platform Control Options

    • No Image
      Keylock for Platform Controls
      $0.00
    • No Image
      Backlit Emergency Stop Button
      $100.00
  • Platform Options

    • No Image
      Automatic Ramp for Ground to Platform Transition
      $0.00
    • No Image
      Solid Hand Rail
      $185.72
    • No Image
      Solid End Wall
      $314.29
    • No Image
      Control Wall Extension
      $314.29
    • No Image
      Solid Platform
      $271.43
    • No Image
      Solid Platform with Safety Pan
      $485.72
    • No Image
      Inside Grab Bar - 48"
      $107.15
  • Landing Controls

    • No Image
      Pushbutton Call Control (each)
      $135.00
    • No Image
      Keyed Pushbutton Call Control (each)
      $232.50
    • No Image
      Toggle Call & Send Control (each)
      $195.00
    • No Image
      Keyed Toggle Call & Send Control (each)
      $285.00
  • Landing Gate

    • No Image
      No Landing Gate
      $0.00
    • No Image
      Left Swing Landing Gate - with Interlock & Keyed Pushbutton Call Control
      $1,185.72
    • No Image
      Right Swing Landing Gate - with Interlock & Keyed Pushbutton Call Control
      $1,185.72
    • No Image
      Left Swing Landing Gate - with Interlock & Keyed Toggle Call/Send Control
      $1,242.86
    • No Image
      Right Swing Landing Gate - with Interlock & Keyed Toggle Call/Send Control
      $1,242.86
  • Landing Gate Options

    • No Image
      Oversized Upper Landing Gate Upcharge
      $378.58
  • Interlocks

    • No Image
      Additional Interlock (each)
      $450.00
  • Other Options

    • No Image
      3 Stop Wiring Charge
      $450.00
    • No Image
      Batteries for Backup System
      $367.00
  • Additional Delivery Services

    • No Image
      Trucking Terminal or Commercial Location with Loading Dock
      $0.00
    • No Image
      Liftgate Delivery, 28" & 52" Units Only
      $279.00
    • No Image
      Limited Access Delivery Charge
      $109.00
    • No Image
      AK, HI, PR, or International - Please Call for Quote
      $0.00
Product Box Bottom

Product Reviews

1 review

0

1

0

0

0
Good product
Feb 3, 2011 1:05 PM
A Little About Myself
Home Modifications
Pros
Good product!
Cons
Self-Installation
Service & Delivery
Good
The Vertical platform lift wasn't as easy to install as originally described.
3 of 4 people found this review helpful
